Weipu SP1311/S2I SP13 Bullet Connector Socket 2-Pin UV Resistant

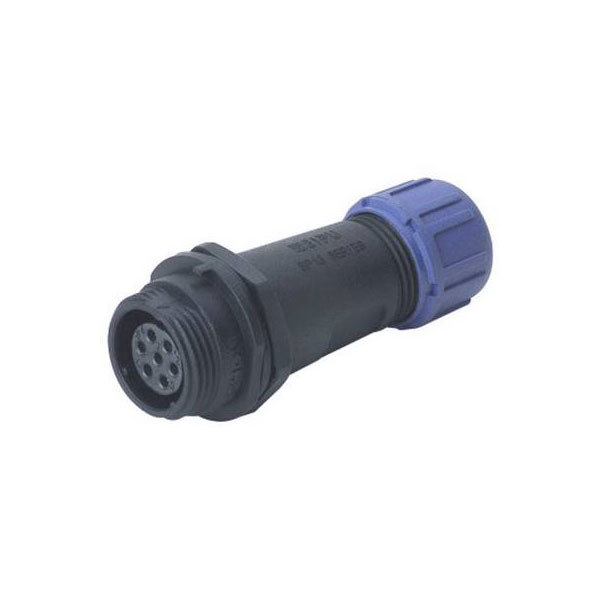

Image Representative of Range

Weipu SP1311/S2I SP13 Bullet Connector Socket 2-Pin UV Resistant

Weipu
Standard range
Order Code:

13-5275

Brand: Weipu MPN: SP1311 / S 2 I EAN-13: 2050001514387
Qty Unit Price (Ex VAT)
1+ £3.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
149 in stock, despatched in 4 working days

The Weipu SP1311 / S 2 I bullet connector is a straight socket with two pins, part of the SP13 series of round connectors. Manufactured by Weipu, it is designed for secure and reliable electrical connections. This connector is typically used in industrial and outdoor applications due to its robust construction.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 250V AC
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 2
