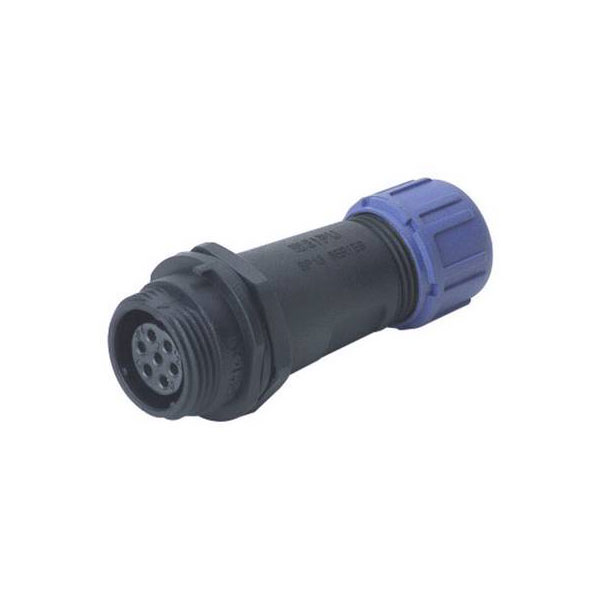

Weipu SP1311/S 9 II SP13 Connector Socket 9 Pins Straight UV Resistant

The Weipu SP1311/S 9 II bullet connector is a straight socket with 9 pins, part of the SP13 series of round connectors. This connector is typically used in electronic and industrial applications where secure and reliable electrical connections are essential. Manufactured by Weipu, it is designed to support connectivity in various devices with its robust and versatile construction.

Type	Socket, straight
Number of Contacts	9
Connector Size	20 mm dia
Gender	Socket
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	PPS
Colour	Black, Blue
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	0.785 mm² (max)
Current Rating	30A
IP Rating	IP68
max. cross section	0.785mm²
Maximum Temperature	+130°C
Min. temperature	-40°C
Nominal Voltage	230V
Number of pins	9
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	18
