Weipu SP1311/S 5I SP13 Bullet Connector Socket 5 Pins UV-Resistant Waterproof

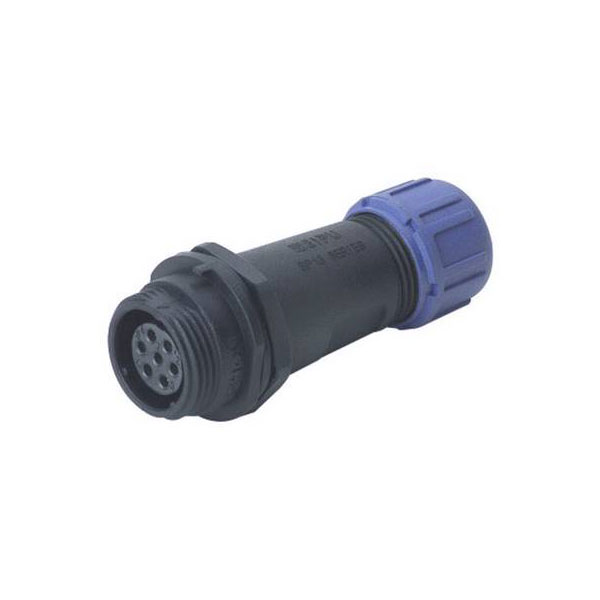

Image Representative of Range

Weipu SP1311/S 5I SP13 Bullet Connector Socket 5 Pins UV-Resistant Waterproof

Weipu
Standard range
Order Code:

13-5278

Brand: Weipu MPN: SP1311 / S 5 I EAN-13: 2050001514417
Qty Unit Price (Ex VAT)
1+ £3.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
62 in stock, despatched in 4 working days

The Weipu SP1311/S 5 I bullet connector socket is a straight, round connector with 5 pins, part of the SP13 series. Manufactured by Weipu, it is designed for reliable and secure connections in various industrial applications. This connector is ideal for use in harsh environments due to its robust construction.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +130°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 50A
Nominal current - rounded value 50A
Nominal voltage 230V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 5
