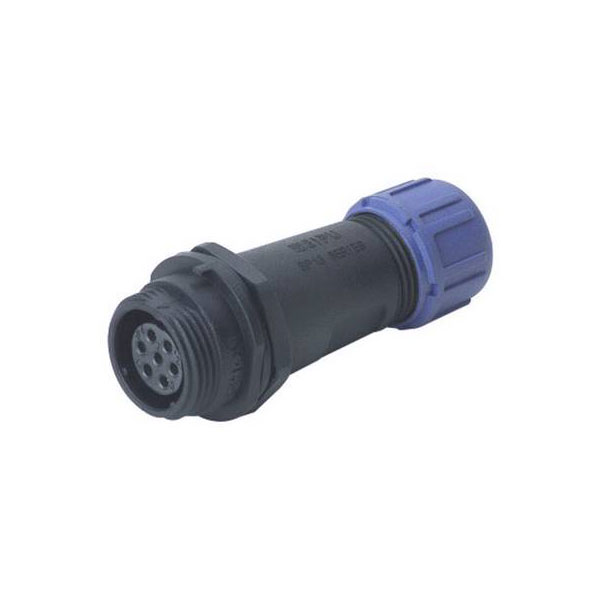

Weipu SP1311/S 5 II SP13 Bullet Connector Socket Straight 5 Pins UV Resistant

Image Representative of Range

Weipu SP1311/S 5 II SP13 Bullet Connector Socket Straight 5 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5279

Brand: Weipu MPN: SP1311 / S 5 II EAN-13: 2050001514424
Qty Unit Price (Ex VAT)
1+ £3.81
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
167 in stock, despatched in 4 working days

The Weipu SP1311/S 5 II bullet connector is a straight socket with a total of five pins, part of the SP13 series of round connectors. Manufactured by Weipu, it is designed for reliable and secure electrical connections. Typical applications include industrial equipment, outdoor installations, and marine environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +130°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 25A
Nominal current - rounded value 25A
Nominal voltage 230V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 5
