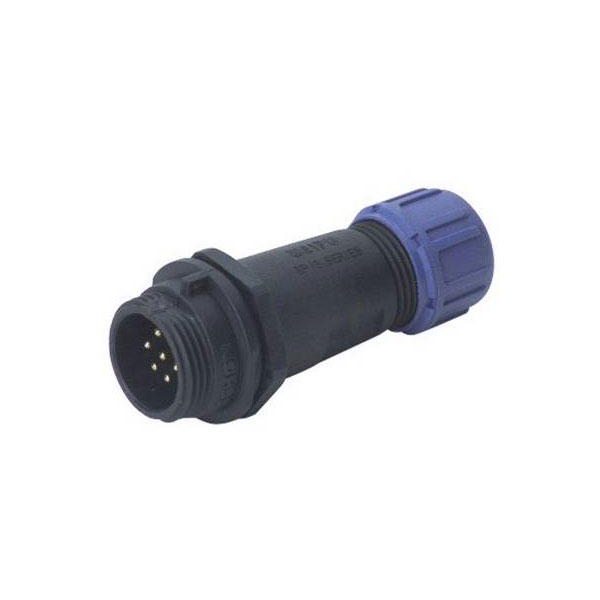

Weipu SP1311/P6 II SP13 Bullet Connector Plug 6 Pins UV/Water Resistant

Image Representative of Range

Weipu SP1311/P6 II SP13 Bullet Connector Plug 6 Pins UV/Water Resistant

Weipu
Standard range
Order Code:

13-5272

Brand: Weipu MPN: SP1311 / P 6 II EAN-13: 2050001514356
Qty Unit Price (Ex VAT)
2+ £3.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
39 in stock, despatched in 4 working days

The Weipu SP1311 / P 6 II is a straight plug bullet connector featuring six pins, designed for secure and reliable electrical connections. Produced by Weipu, this SP13 series round connector is valued for its robustness and versatility. It is typically used in industrial, automotive, and outdoor electrical applications due to its durable construction.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +120°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 125V AC
Number of pins 6
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 6
