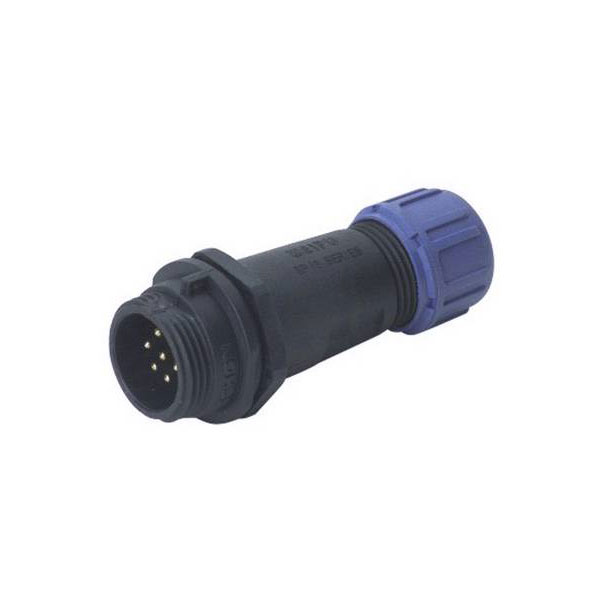

Weipu SP1311/P5I SP13 Bullet Connector 5 Pins UV Resistant IP68 Rated

The Weipu SP1311 / P 5 I bullet connector is a straight plug with 5 pins, belonging to the SP13 series of round connectors. Manufactured by Weipu, this connector is designed for durable, reliable connections in various electrical applications. It is typically used in industrial and outdoor environments where secure and robust connectivity is essential.

Type	Plug, straight
Number of Contacts	5
Connector Size	20 mm dia
Gender	Plug
Cable Ø (max.)	6.5mm
Cable Ø range	4 - 6.5mm
Cable Ø up to	4mm
Case Material	PPS
Colour	Black, Blue
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	0.785 mm² (max)
Current Rating	2A
IP Rating	IP68
max. cross section	0.785mm²
Maximum Temperature	+85°C
Min. temperature	-25°C
Nominal Voltage	150V
Number of pins	5
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	18
