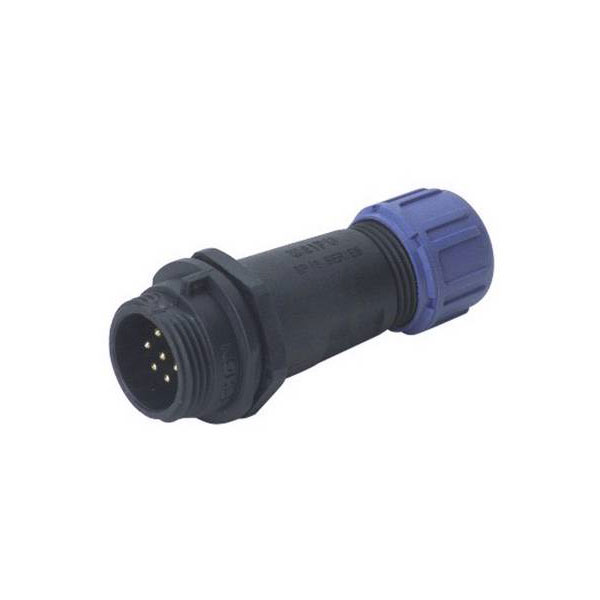

Weipu SP1311/P 9 II SP13 Bullet Connector Plug 9-Pin Screw Lock UV Resist

Image Representative of Range

Weipu SP1311/P 9 II SP13 Bullet Connector Plug 9-Pin Screw Lock UV Resist

Weipu
Standard range
Order Code:

13-5274

Brand: Weipu MPN: SP1311 / P 9 II EAN-13: 2050001514370
Qty Unit Price (Ex VAT)
1+ £3.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Weipu SP1311/P 9 II is a straight bullet connector plug with 9 pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is known for its reliability and robust design, making it suitable for a variety of electronic applications such as industrial machinery and outdoor equipment. Its secure connection system ensures stable performance in challenging environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +120°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 125V AC
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 9
