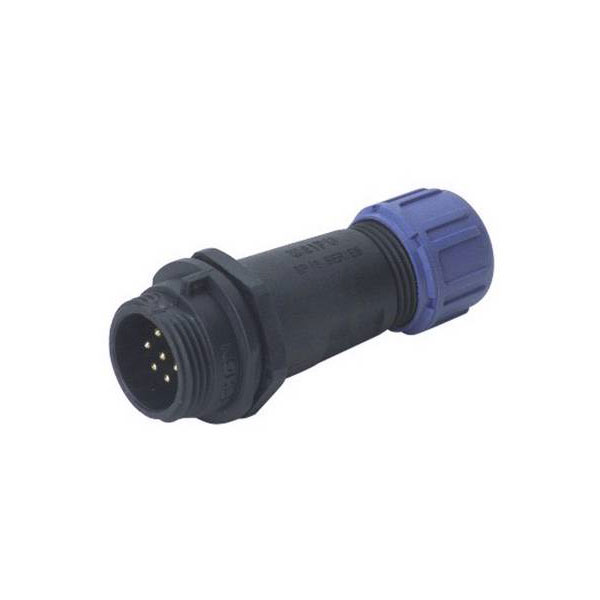

Weipu SP1311/P 4 I SP13 Bullet Connector 4 Pins UV Resistant Waterproof

Image Representative of Range

Weipu SP1311/P 4 I SP13 Bullet Connector 4 Pins UV Resistant Waterproof

Weipu
Standard range
Order Code:

13-5269

Brand: Weipu MPN: SP1311 / P 4 I EAN-13: 2050001514325
Qty Unit Price (Ex VAT)
2+ £3.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 7 weeks

The Weipu SP1311/P 4 I bullet connector is a straight plug featuring four pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is known for its reliability and robust design. It is typically used in industrial and outdoor electronic applications where durable and waterproof connections are required.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute Weipu Connector
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 150V
Number of pins 4
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 4
