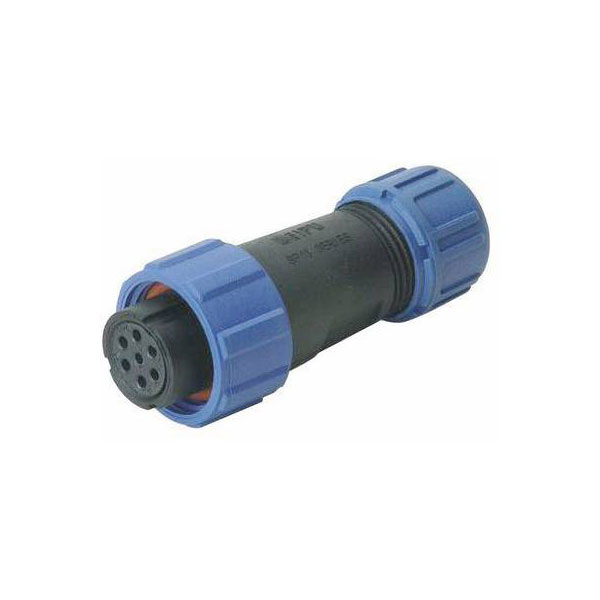

Weipu SP1310/S9II SP13 Bullet Connector Socket 9 Pins UV Resistant

Image Representative of Range

Weipu SP1310/S9II SP13 Bullet Connector Socket 9 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5265

Brand: Weipu MPN: SP1310 / S 9 II EAN-13: 2050001514295
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
29 in stock, despatched in 4 working days

Manufactured by Weipu, the SP1310 / S 9 II is a bullet connector socket featuring a straight design with a total of 9 pins. Part of the SP13 series, it is constructed for reliable and secure connections in round connector applications. Ideal for industrial and outdoor use, it provides robust connectivity in harsh environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +100°C
Min. temperature -30°C
Misc Attribute Weipu Connector
Nominal current 20A
Nominal current - rounded value 20A
Nominal voltage 250V
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 9
