Weipu SP1310/S5I SP13 Connector 5-Pin Socket IP-Rated UV-Resistant

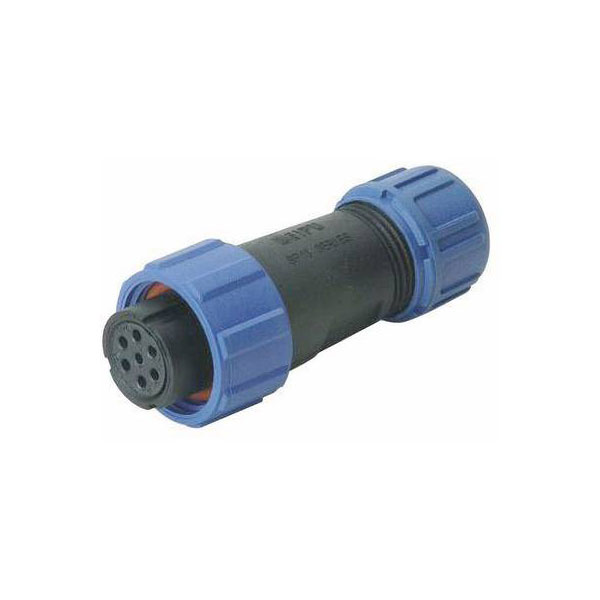

Image Representative of Range

Weipu SP1310/S5I SP13 Connector 5-Pin Socket IP-Rated UV-Resistant

Weipu
Standard range
Order Code:

13-5261

Brand: Weipu MPN: SP1310 / S 5 I EAN-13: 2050001514257
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
45 in stock, despatched in 4 working days

Weipu manufactures the SP1310 / S 5 I bullet connector, a straight socket with 5 pins from the SP13 series of round connectors. This connector is suitable for industrial and outdoor applications due to its robust design and reliable connectivity. Typical uses include instrument and automation systems, where secure and consistent electrical connections are crucial.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +100°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 20A
Nominal current - rounded value 20A
Nominal voltage 250V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 5
