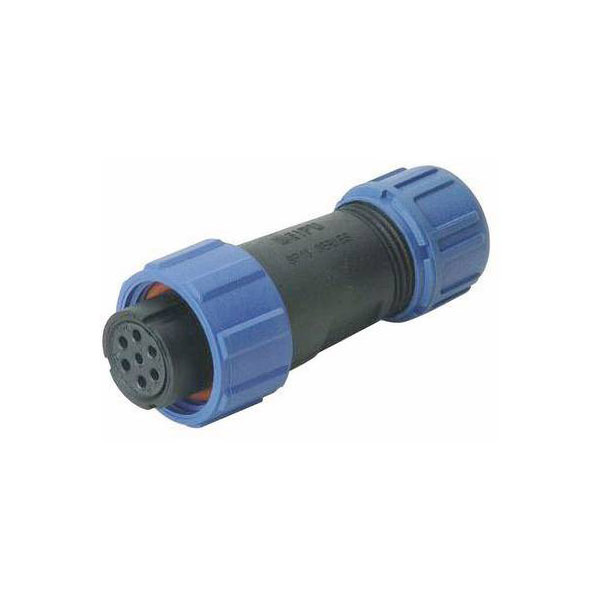

Weipu SP1310/S4I SP13 Bullet Connector Socket 4 Pins UV Resistant

Image Representative of Range

Weipu SP1310/S4I SP13 Bullet Connector Socket 4 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5260

Brand: Weipu MPN: SP1310 / S 4 I EAN-13: 2050001514240
Qty Unit Price (Ex VAT)
2+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
19 in stock, despatched in 4 working days

The Weipu SP1310 / S 4 I Bullet connector features a straight socket with four pins, designed for reliable electrical connections. Manufactured by Weipu, this connector is part of the SP13 series, known for its durable and compact design. It is typically used in industrial and outdoor applications where secure and weather-resistant connections are crucial.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 32A
Nominal current - rounded value 32A
Nominal voltage 600V
Number of pins 4
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 4
