Weipu SP1310/S 6 II SP13 Bullet Connector Socket Straight 6 Pins UV Resistant

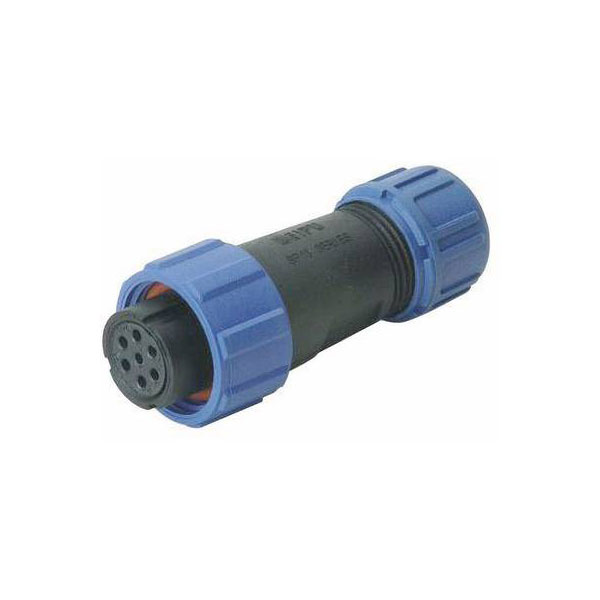

Image Representative of Range

Weipu SP1310/S 6 II SP13 Bullet Connector Socket Straight 6 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5263

Brand: Weipu MPN: SP1310 / S 6 II EAN-13: 2050001514271
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
63 in stock, despatched in 4 working days

The Weipu SP1310 / S 6 II bullet connector is a high-quality connector featuring a straight socket design with six pins, intended for secure electrical contacts. Manufactured by Weipu, this connector belongs to the SP13 series, known for its reliability and durability in challenging environments. It is commonly used in industrial, outdoor, and marine applications, where a robust and waterproof connection is essential.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +100°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 20A
Nominal current - rounded value 20A
Nominal voltage 250V
Number of pins 6
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 6
