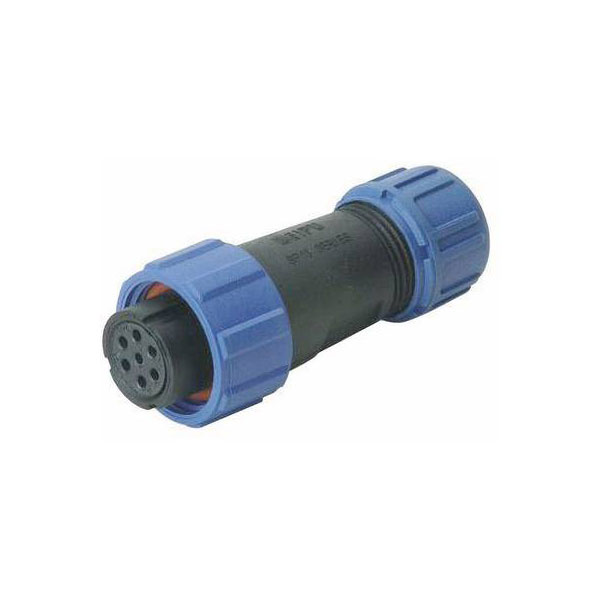

Weipu SP1310/S 2 I SP13 Bullet Connector Socket 2 Pins Straight UV Resistant

Image Representative of Range

Weipu SP1310/S 2 I SP13 Bullet Connector Socket 2 Pins Straight UV Resistant

Weipu
Extended range
Order Code:

13-5266

Brand: Weipu MPN: SP1310 /S 2 I EAN-13: 2050001514226
Qty Unit Price (Ex VAT)
2+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

The Weipu SP1310/S 2 I is a robust bullet connector from the SP13 series, featuring 2 pins and a straight socket design. This versatile connector, ideal for various electrical and electronic applications, ensures reliable connectivity. Typical uses include outdoor equipment, LED lighting, and industrial machinery.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 250V AC
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 2
