Weipu SP1310/P7 II SP13 Bullet Connector Plug 7 Pins UV Resistant

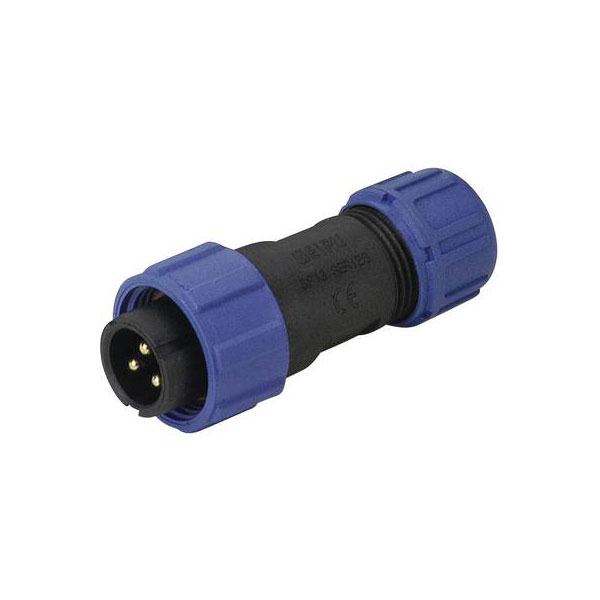

Image Representative of Range

Weipu SP1310/P7 II SP13 Bullet Connector Plug 7 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5257

Brand: Weipu MPN: SP1310 / P 7 II EAN-13: 2050001514202
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
199 in stock, despatched in 4 working days

Weipu's SP1310/P 7 II is a straight bullet connector plug from the SP13 series, featuring seven pins. Known for its reliability and robust design, it is suitable for harsh environments. Typically, it is used in industrial and outdoor applications requiring secure electrical connections.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute Weipu Connector
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 277V
Number of pins 7
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 7
