Weipu SP1310/P 9 II SP13 Bullet Connector 9-Pin Straight Plug Waterproof

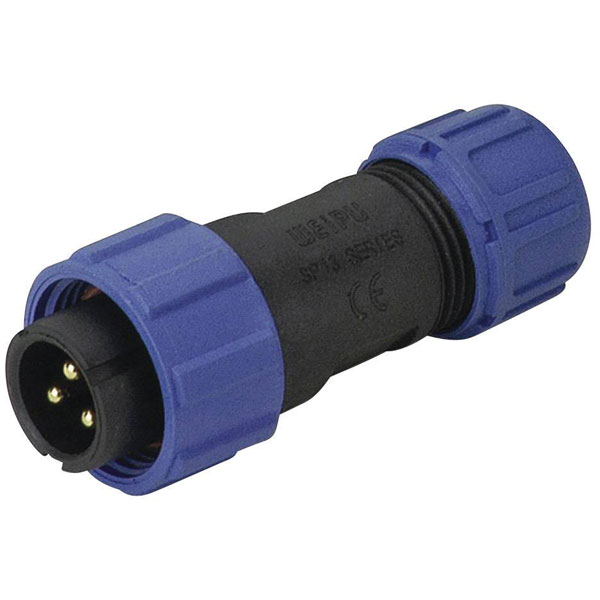

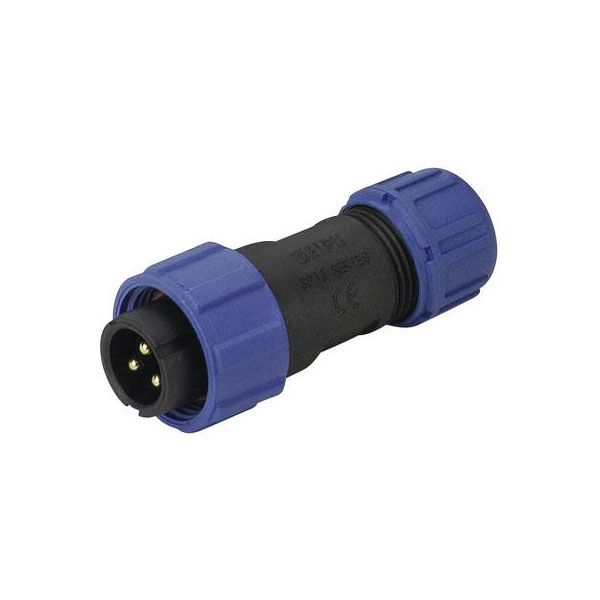

Image Representative of Range

Weipu SP1310/P 9 II SP13 Bullet Connector 9-Pin Straight Plug Waterproof

Weipu
Standard range
Order Code:

13-5258

Brand: Weipu MPN: SP1310 / P 9 II EAN-13: 2050001514219
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
74 in stock, despatched in 4 working days

The Weipu SP1310 / P 9 II is a straight plug bullet connector with 9 pins, part of the SP13 series of round connectors. Manufactured by Weipu, it is renowned for its robust design and reliable electrical connections. It is typically used in various industrial and outdoor applications requiring strong, waterproof connections.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute Weipu Connector
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 277V
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 9
