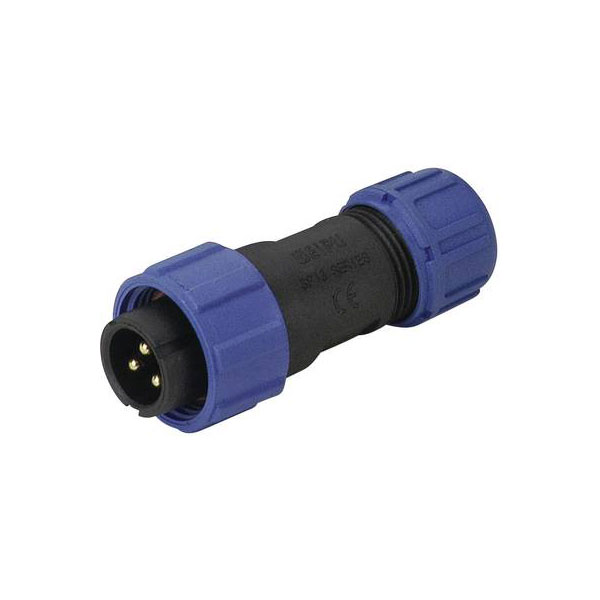

Weipu SP1310/P 6 II SP13 Bullet Connector 6-Pin Straight Plug UV Resistant

Image Representative of Range

Weipu SP1310/P 6 II SP13 Bullet Connector 6-Pin Straight Plug UV Resistant

Weipu
Standard range
Order Code:

13-5256

Brand: Weipu MPN: SP1310 / P 6 II EAN-13: 2050001514196
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
201 in stock, despatched in 4 working days

The Weipu SP1310 / P 6 II is a straight plug bullet connector with six pins, part of the SP13 series. Manufactured by Weipu, it features a reliable and durable design suitable for various electrical applications. Typically used in industrial or outdoor settings, this connector offers a secure and waterproof solution for connecting electrical circuits.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 6A
Nominal current - rounded value 6A
Nominal voltage 125V
Number of pins 6
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 6
