Weipu SF1211/P6 II SF12 Bullet Connector 6 Pins Straight Plug Compact

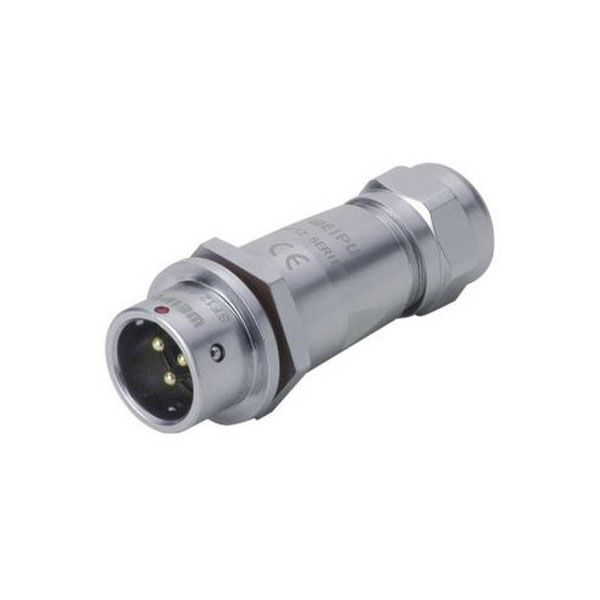

Image Representative of Range

Weipu SF1211/P6 II SF12 Bullet Connector 6 Pins Straight Plug Compact

Weipu
Order Code:

13-5214

Brand: Weipu MPN: SF1211/P6 II EAN-13: 2050001555007
Qty Unit Price (Ex VAT)
1+ £9.08
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

Weipu's SF1211/P6 II is a straight bullet connector plug featuring six pins, designed as part of the SF12 series. It is commonly used in electronic and industrial applications for secure and reliable connections. The robust construction makes it suitable for environments requiring high durability and performance.
Type Bullet connector
IP Rating IP67
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case Material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector Type Plug, straight
Contact Material Brass gold plated
Cross-section range 0.758 mm² (max)
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal Current 7A
Nominal current - rounded value 7A
Nominal Voltage 250V
Number of Pins 6
Seal Push-Pull
Series SF12
Total no. of pins 6
