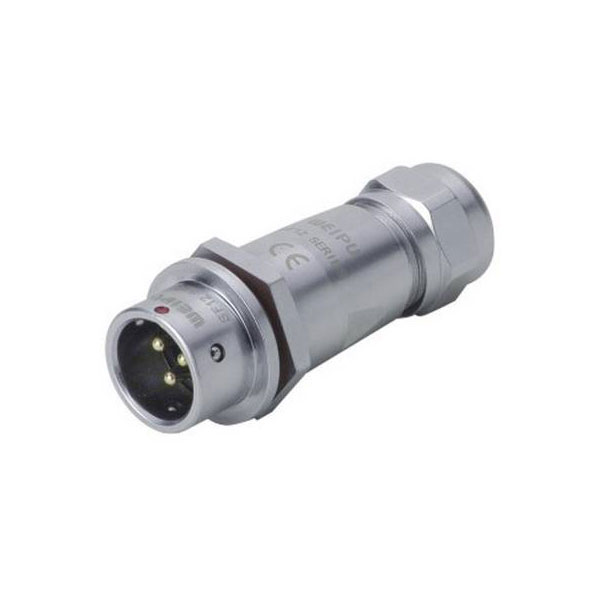

Weipu SF1211/P5 II SF12 Bullet Connector Plug 5 Pins Push-Pull Locking

The Weipu SF1211/P5 II bullet connector plug is a straight, round connector in the SF12 series with five pins, designed for secure and reliable electrical connections. Manufactured by Weipu, it is ideal for use in industrial and electronic applications requiring durable and efficient connectivity. This connector is commonly employed in equipment where robust performance is essential.

Type	Plug, straight
Number of Contacts	5
Connector Size	18 mm dia
Gender	Plug
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	6A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+95°C
Min. temperature	-40°C
Nominal Voltage	250V
Number of pins	5
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
