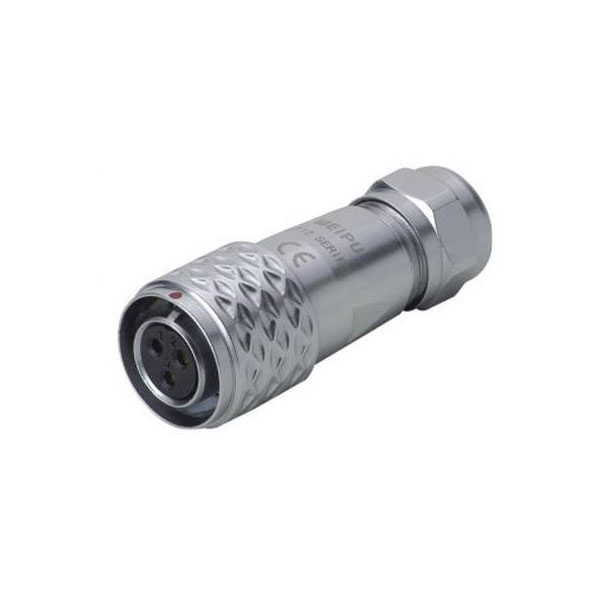

Weipu SF1210/S6 II SF12 Connector Straight 6 Pins Push-Pull Lock

Manufactured by Weipu, the SF1210/S6 II is a straight bullet connector with a total of 6 pins, part of the SF12 series of round connectors. Its robust design is suitable for electrical applications where reliable conductivity is required. This connector is commonly used in industrial and electronic equipment for secure and efficient power or signal transmission.

Type	Connector, straight
Number of Contacts	6
Connector Size	18 mm dia
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	1A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	125V
Number of pins	6
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
