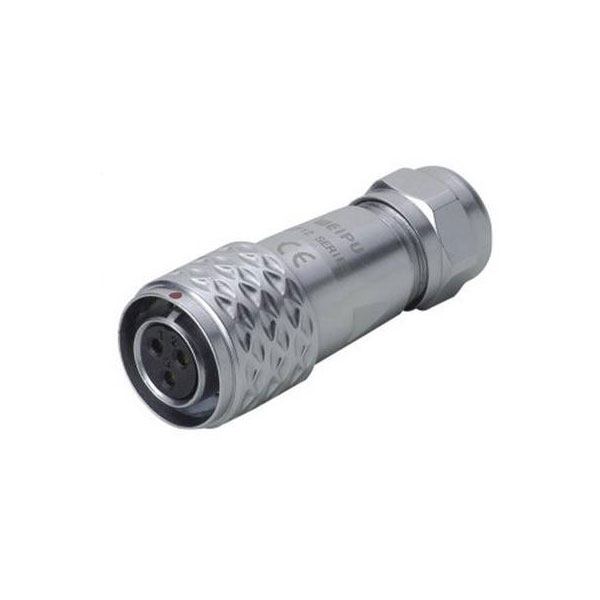

Weipu SF1210/S4 SF12 Connector Straight 4-Pin Push-Pull Locking Mechanism

Weipu manufactures the SF1210/S4 I bullet connector, a straight connector with a total of four pins from the SF12 series. This robust connector is ideal for ensuring reliable electrical connections in harsh environments. It is commonly used in industrial and outdoor applications requiring secure and durable connectivity solutions.

Type	Connector, straight
Number of Contacts	4
Connector Size	18 mm dia
Cable Ø (max.)	6.5mm
Cable Ø range	4 - 6.5mm
Cable Ø up to	4mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	3A
IP Rating	IP67
max. cross section	0.758mm²
Max. temperature	+70°C
Min. temperature	-20°C
Nominal Voltage	60V
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
