Weipu SF1210/P7 II SF12 Connector: 7-Pin Push-Pull Lock Straight Plug

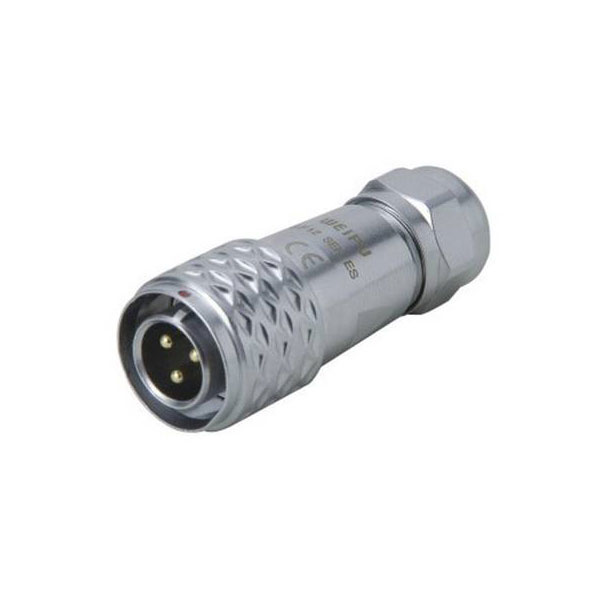

Image Representative of Range

Weipu SF1210/P7 II SF12 Connector: 7-Pin Push-Pull Lock Straight Plug

Weipu
Standard range
Order Code:

13-5201

Brand: Weipu MPN: SF1210/P7 II EAN-13: 2050001554871
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
16 in stock, despatched in 4 working days

The Weipu SF1210/P7 II bullet connector is a straight plug with seven pins, part of the SF12 series of round connectors. Manufactured by Weipu, this connector is ideal for secure and reliable electrical connections in industrial and outdoor applications. Its robust design ensures durability and optimal performance in various environmental conditions.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 1A
Nominal current - rounded value 1A
Nominal voltage 125V
Number of pins 7
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 7
