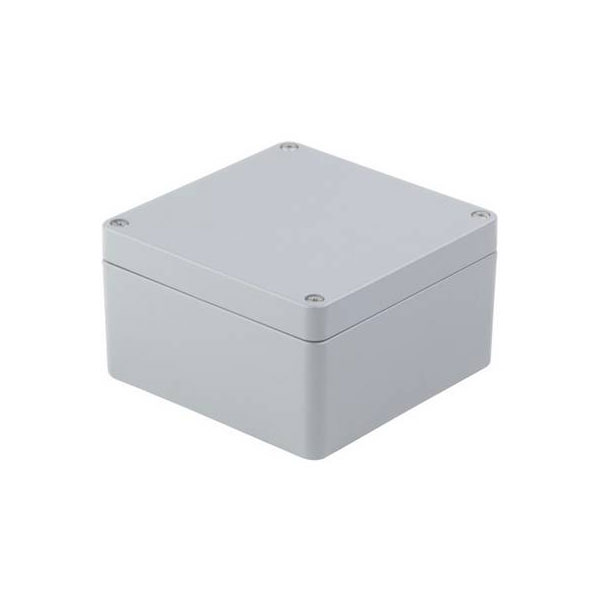

Weidmüller's KLIPPON K41 RAL7001 is a universal enclosure made from aluminium with a powder-coated silver-grey finish. It provides robust protection, ideal for safeguarding electrical components. This enclosure is typically used in industrial and automation applications.
| Type |
Universal enclosure |
| Material |
powder-coated |
| Enclosure Height |
120mm |
| Enclosure Width |
122mm |
| Colour |
Silver-grey |
| Access opening: height |
111mm |
| Access opening: width |
113mm |
| Approval conditions |
cULus, RMRS, DNV |
| Approvals |
CE, cULus |
| Areas of use |
Process industry, |
| Basic material |
Aluminium AlSi12 |
| Certificate no. (cULus) |
E197061 |
| Certificate No. (DNV) |
TAE00002SM |
| Color |
Grey |
| components can be installed inside the enclosures, and |
•Alloy is resistant to salt water |
| Corner model |
false |
| Couplable |
true |
| cULus, and DNV GL as well as the empty enclosure |
GTIN (EAN) |
| Declaration of Conformatiy No. (DoC |
DE PS2410 160412 |
| Degree of protection (IP) |
IP66 |
| Depth |
81mm |
| Depth (inches) |
3.189 inch |
| Dimensions |
(W x H x D) 122 x 120 x 81 mm |
| ECLASS 14 |
27-18-01-01 |
| ECLASS 15.0 |
27-18-01-01 |
| EMC-version |
false |
| Enclosure attachment |
Holes 6mm |
| ETIM 10 |
EC000261 |
| ETIM 8.0 |
EC000261 |
| ETIM 9.0 |
EC000261 |
| Flange plate |
No |
| Floor standing wall model |
false |
| Freestanding |
false |
| Height |
120 |
| Height (inches) |
4.7244 inch |
| Impact resistance |
10 J version standard |
| Impact strength |
IK09 |
| Integral fixing |
Threaded holes M5 |
| Intermediate mounting |
false |
| IP Rating |
IP66, IP67, IP68 |
| Length |
81mm |
| Lid |
Yes |
| Lid attachment |
M6 torx stainless steel |
| LVD) |
001ISS03 |
| M32 |
1 |
| Material quality |
Other |
| Material thickness of cover |
4mm |
| Material thickness of enclosure |
4.5mm |
| Max. payload |
1.46kg |
| Max. permitted load of the door(s) according to IEC 62208 |
0.1464 |
| Max. permitted load of the enclosure according to IEC 62208 |
1.464 |
| Max. permitted load of the mounting plate according to IEC 62208 |
1.3176 |
| Maximum Operating Temperature |
85°C |
| Min Operating Temperature |
-40°C |
| Minimum Operating Temperature |
-40°C |
| Misc Attribute 1 |
KLIPPON K41 RAL7001 |
| Misc Attribute 2 |
Painted, standard |
| Mounting dimension - height |
82mm |
| Mounting dimension - width |
106mm |
| Mounting plate depth-adjustable |
false |
| Net weight |
955g |
| Note: protection class |
IP68 (t=72h, h=1m) |
| Number of doors |
0 |
| Number of lid screws |
4 |
| Number of locks |
0 |
| Operating Temperature |
-40 °C...80°C |
| Operating temperature, max. |
80°C |
| Package/Case |
120 |
| Pitched roof |
false |
| Pole fastening |
false |
| Protection class (UL) |
Type 4, Type 4X |
| Protection degree |
IP66, IP67, IP68 |
| RAL-number |
7001 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Seal material |
Chloroprene |
| Standards |
EN 45545-2:2013 |
| Suitable for metrical mounting |
false |
| Suitable for outdoor set-up |
true |
| Suitable for wall built-in |
false |
| Suitable for wall mounting |
true |
| Surface finish |
Powder-coated, textured |
| Surface finishing |
Powder coating |
| tance, the excellent IP protection and the good impact |
and a variety of terminal configurations |
| The aluminium Klippon® K enclosures are suitable for |
•Suitable for railway applications according to EN |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 |
6 |
| Torque for lid screws |
2.5 Nm |
| UL File Number Search |
UL Website |
| Unassembled to fit rail |
TS35 105 KLIPPON K41/ |
| use in an extremely wide range of different areas. Various |
45545-2:2013 |
| Version |
Klippon K (aluminium empty enclosure), Empty |
| WDU 10 / ZDU 10 |
1x6 |
| WDU 6 / ZDU 6 |
1x8 |
| Weight |
840g |
| Width |
122 |
| Width (inches) |
4.8031 inch |
| will benefit in particular from the high temperature resis- |
•Standardised distributor enclosures with threaded holes |
| With glazed door |
false |
| With mounting plate |
false |
| With rear door |
false |
| With ventilation door |
false |
