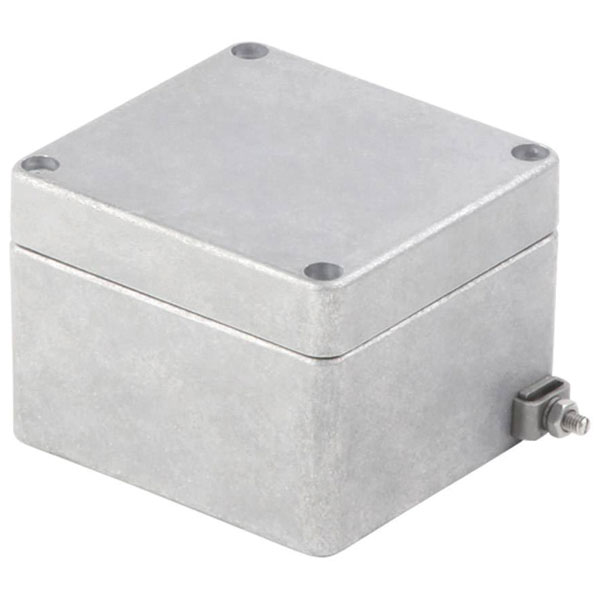

The Weidmüller KLIPPON K32 RAL7001 is an aluminium powder-coated universal enclosure in a silver-grey finish, offering robust protection for various installations. It is designed for securing electrical and electronic components, making it ideal for industrial and outdoor applications. Its durable construction ensures reliability in harsh environments.
| Type |
Universal enclosure |
| Material |
powder-coated |
| Enclosure Height |
80mm |
| Enclosure Width |
250mm |
| Colour |
Silver-grey |
| Access opening: height |
72mm |
| Access opening: width |
242mm |
| Approval conditions |
cULus, RMRS, DNV |
| Approvals |
CE, cULus |
| Areas of use |
Process industry, |
| Basic material |
Aluminium AlSi12 |
| Certificate no. (cULus) |
E197061 |
| Certificate No. (DNV) |
TAE00002SM |
| Color |
Grey |
| components can be installed inside the enclosures, and |
•Alloy is resistant to salt water |
| Corner model |
false |
| Couplable |
true |
| cULus, and DNV GL as well as the empty enclosure |
GTIN (EAN) |
| Declaration of Conformatiy No. (DoC |
DE PS2410 160412 |
| Degree of protection (IP) |
IP66 |
| Depth |
55mm |
| Depth (inches) |
2.1654 inch |
| Dimensions |
(W x H x D) 250 x 80 x 55 mm |
| ECLASS 14 |
27-18-01-01 |
| ECLASS 15.0 |
27-18-01-01 |
| EMC-version |
false |
| Enclosure attachment |
Holes 4mm |
| ETIM 10 |
EC000261 |
| ETIM 8.0 |
EC000261 |
| ETIM 9.0 |
EC000261 |
| Flange plate |
No |
| Floor standing wall model |
false |
| Freestanding |
false |
| Height |
80 |
| Height (inches) |
3.1496 inch |
| Impact resistance |
10 J version standard |
| Impact strength |
IK09 |
| Integral fixing |
Threaded holes M4 |
| Intermediate mounting |
false |
| IP Rating |
IP66, IP67, IP68 |
| Length |
55mm |
| Lid |
Yes |
| Lid attachment |
M4 torx stainless steel |
| LVD) |
001ISS03 |
| M25 |
6 |
| Material quality |
Other |
| Material thickness of cover |
2.5mm |
| Material thickness of enclosure |
4mm |
| Max. payload |
2kg |
| Max. permitted load of the door(s) according to IEC 62208 |
0.2 |
| Max. permitted load of the enclosure according to IEC 62208 |
2 |
| Max. permitted load of the mounting plate according to IEC 62208 |
1.8 |
| Maximum Operating Temperature |
85°C |
| Min Operating Temperature |
-40°C |
| Minimum Operating Temperature |
-40°C |
| Misc Attribute 1 |
KLIPPON K32 RAL7001 |
| Misc Attribute 2 |
Painted, standard |
| Mounting dimension - height |
52mm |
| Mounting dimension - width |
238mm |
| Mounting plate depth-adjustable |
false |
| Net weight |
790g |
| Note: protection class |
IP68 (t=72h, h=1m) |
| Number of doors |
0 |
| Number of lid screws |
4 |
| Number of locks |
0 |
| Operating Temperature |
-40 °C...80°C |
| Operating temperature, max. |
80°C |
| Pitched roof |
false |
| Pole fastening |
false |
| Protection class (UL) |
Type 4, Type 4X |
| Protection degree |
IP66, IP67, IP68 |
| RAL-number |
7001 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Seal material |
Chloroprene |
| Standards |
EN 45545-2:2013 |
| Suitable for metrical mounting |
false |
| Suitable for outdoor set-up |
true |
| Suitable for wall built-in |
false |
| Suitable for wall mounting |
true |
| Surface finish |
Powder-coated, textured |
| Surface finishing |
Powder coating |
| tance, the excellent IP protection and the good impact |
and a variety of terminal configurations |
| The aluminium Klippon® K enclosures are suitable for |
•Suitable for railway applications according to EN |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 |
7 |
| Torque for lid screws |
2.5 Nm |
| UL File Number Search |
UL Website |
| use in an extremely wide range of different areas. Various |
45545-2:2013 |
| Version |
Klippon K (aluminium empty enclosure), Empty |
| Weight |
710g |
| Width |
250 |
| Width (inches) |
9.8425 inch |
| will benefit in particular from the high temperature resis- |
•Standardised distributor enclosures with threaded holes |
| With glazed door |
false |
| With mounting plate |
false |
| With rear door |
false |
| With ventilation door |
false |
