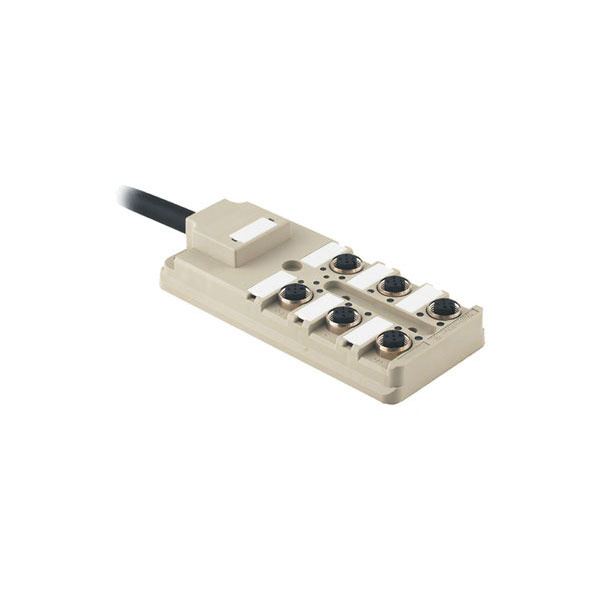

Weidmüller manufactures the 9456600000 distributor module, which accommodates sensor-actuator connections with its unshrouded design. It is engineered for efficient signal distribution in automation systems. Typical applications include industrial machinery and process control environments.
| Type |
Sensor-actuator distributor |
| Approvals |
cURus |
| Available until |
2025-12-30T00:00:00+01:00 |
| Bending cycles |
2 Mio |
| Bending radius, min., moving |
10 x cable diameter |
| Cable Length |
3 m |
| Certificate No. (cURus) |
E141197 |
| Colour coding |
blue, brown, Green/yellow, |
| Connection thread |
M12 |
| Contact carrier material |
PBT (UL 94 V0) |
| Contact Material |
Gold, CuZn |
| Contact surface |
Gold-plated |
| Current per signal |
2 A |
| Delivery status |
This article will no longer be available in the future. |
| Depth |
127mm |
| Depth (inches) |
5 inch |
| Dimensioned drawing |
Wiring diagram |
| Distributor outlet |
Fixed cable version |
| ECLASS 14 |
27-44-01-08 |
| ECLASS 15.0 |
27-44-01-08 |
| Electrical isolation available |
No |
| ETIM 10 |
EC002585 |
| ETIM 8.0 |
EC002585 |
| ETIM 9.0 |
EC002585 |
| Fire behaviour |
V-0 |
| GTIN (EAN) |
4008190347529 |
| Halogen |
No |
| Height |
25mm |
| Height (inches) |
0.9842 inch |
| Hood sealing material |
Viton |
| Housing Colour |
grey, RAL 7032 |
| Housing main material |
Pocan |
| Insulation Resistance |
109 O |
| LED |
Yes |
| LED colour for I/O function |
yellow |
| LED colour for indicating operation |
green |
| LED initiator |
Yes |
| Material of distributor |
Plastic |
| Net weight |
522g |
| Number of contact sockets |
6 |
| Number of Poles |
6 |
| O.D. |
8.8mm |
| Operating Temperature |
-20 - 80°C |
| Plugging cycles |
= 50 |
| Plug-in station coding |
A-coded |
| Pollution severity |
3 |
| Protection degree |
IP68 |
| Rated voltage, max. |
30 V |
| Rated voltage, min. |
10 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Screw socket |
Nickel-plated CuZn |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Sheathing stripping length |
100mm |
| Shielded |
No |
| Suitable for cable carriers |
Yes |
| Test Voltage |
1 kV |
| Total current |
9 A |
| UL File Number Search |
UL Website |
| Version |
Fixed cable version, M12, 30 V, A-coded, LED: Yes, |
| Width |
60mm |
| Width (inches) |
2.3622 inch |
| Wire cross section (Print/Online) |
12 x 0.34 mm² + 3 x 1.0 |
