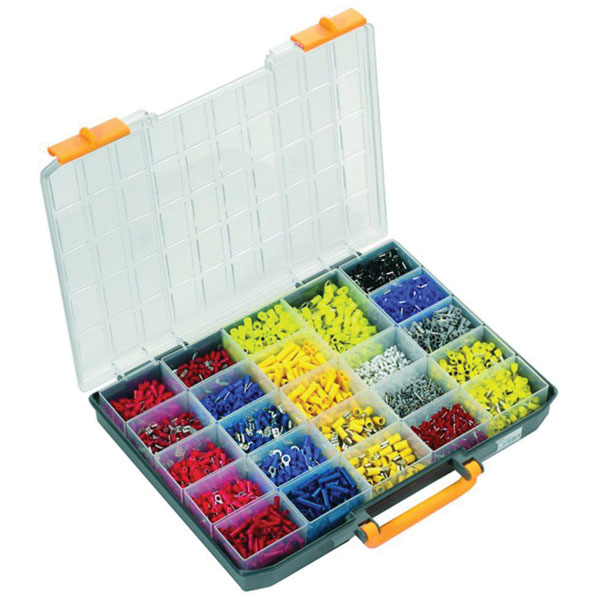

Weidmuller 9202640000 Crimp Connector Set 4500pieces Assortment Box

The Weidmüller 9202640000 crimp connector set includes ferrules for wire sizes ranging from 0.50 mm² to 6 mm², available in multiple colours such as white, grey, red, black, blue, and yellow. This set, consisting of 4500 pieces, is ideal for secure and reliable electrical connections in various industrial applications. Weidmüller's crimp connectors ensure efficient assembly of electrical equipment by enhancing conductivity and providing accurate, solder-free terminations

Type	Crimp connector set
Colour	White, Grey, Red, Black, Blue, Yellow
Colour code	DIN
Depth	330mm
Depth (inches)	12.9921 inch
Description of article	Crimp set contacts with
GTIN (EAN)	4032248503322
Height	57mm
Height (inches)	2.2441 inch
Housing colour	Other
Housing material quality	Polyamide (PA)
Insulated cable connections	true
Insulated cable end sleeves	true
Insulation Material	PVC
Insulation Type	Partially insulated
Length	473mm
max. cross section	6mm²
Min. cross section	0.50mm²
Misc Attribute	CRIMP-SET KONTAKTE
Net weight	3050.96g
Non-insulated cable end sleeves	false
Non-isolated cable connections	false
Number of AEH	2000 pcs.
Packaging	Box
REACH SVHC	No SVHC above 0.1 wt%
RoHS Compliance Status	Compliant without exemption
SCIP	1eacbb3e-7931-4ebb-9179-f29fd9b50028
Tube cable lug for Cu-conductors	true
Version	Assortment box, Colour code: DIN
Weight	3635g
Width	330mm
Width (inches)	16.2598 inch
With tool	false
With transparent cover	true
With ty-rap	false
