Weidmüller's bullet receptacle, model 9200700000, is an insulated crimp connector with a pin diameter of 4 mm, suitable for wire sizes between 0.50 mm² and 1.50 mm². This red terminal is typically used for secure electrical connections in automotive and industrial applications. Each package contains 100 pieces, ideal for large projects or stocking up in maintenance environments.
| Insulation |
PVC |
| Colour |
Red |
| Type |
Bullet receptacle |
| Maximum Wire Size |
16 |
| Available until |
2026-03-31T00:00:00+02:00 |
| AWG (min.) |
22 |
| Body Orientation |
Straight |
| Colour insulation |
Red |
| Conductor cross-section, max. |
1.5mm² |
| Conductor cross-section, min. |
0.5mm² |
| Contact Material |
Brass tin plated |
| Delivery status |
This article will no longer be available in the future. |
| Depth |
7.6mm |
| Depth (inches) |
0.2992 inch |
| Description of article |
Round-plug sleeve with |
| Dimension |
ø 4mm |
| Dimension (round plug) |
ø 4mm |
| For pull protected connections |
true |
| Gender |
Female |
| GTIN (EAN) |
4032248410545 |
| Identification colour |
red |
| Insulation Type |
Insulated |
| Material |
Copper |
| Material/plastic |
PVC |
| max. cross section |
1.50mm² |
| Maximum Wire Size AWG |
16 |
| Min. cross section |
0.50mm² |
| Misc Attribute |
LID 1,5F4 RF |
| Mounting |
Cable Mount |
| Net weight |
1.09g |
| Nominal cross section |
0.5 - 1.5 |
| Number of branches |
2 |
| Oil stop/centre bar |
false |

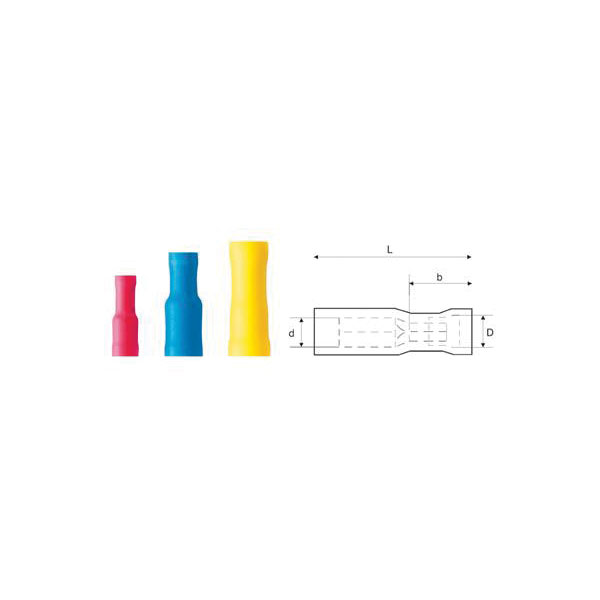

| Outside diameter (d) |
4mm |
| Pin Ø |
4mm |
| Plastic collar diameter (D) |
4mm |
| Plastic collar length (b) |
10.5mm |
| Product Weight (g) |
1.25 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Suitable for fine strand conductors |
true |
| Suitable for flat conductors |
false |
| Suitable for high temperatures (to 650 °C) |
false |
| Suitable for round conductors |
true |
| Suitable for solid conductors |
false |
| Suitable for stranded conductors |
true |
| Support sleeve |
No |
| Temperature Range |
+70°C |
| Termination Method |
Crimp |
| Type of connection |
Percussion connector |
| Version |
cable lug, terminal end,Insulated cable connec- |
| Width |
23mm |
| Width (inches) |
0.9055 inch |
