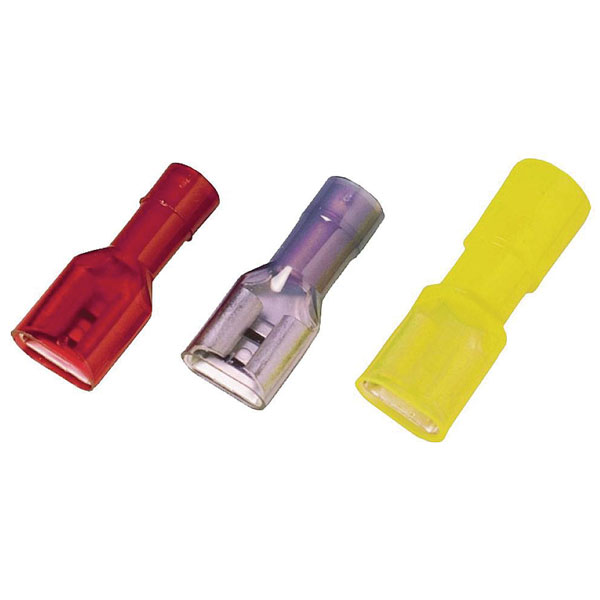

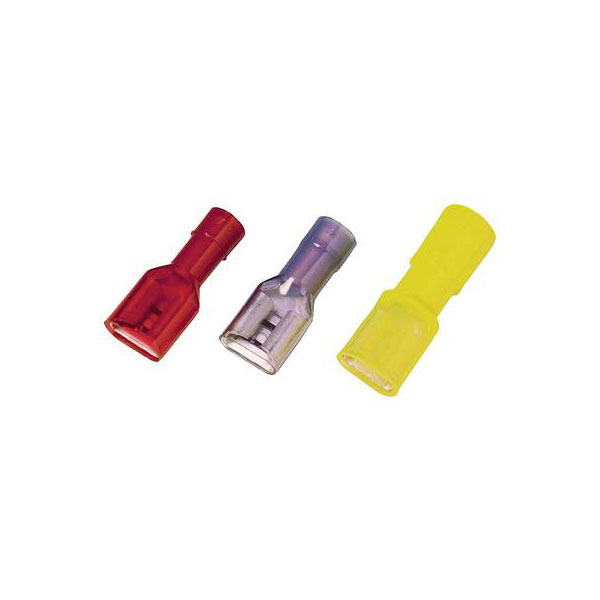

The Weidmüller 9200660000 blade receptacle is an insulated crimp connector designed with a connector width of 6.3 mm and a thickness of 0.8 mm. This yellow terminal is typically used in industrial applications requiring secure electrical connections. Supplied in packs of 100, it is suitable for various wiring tasks that demand reliable blade terminals.
| Insulation |
Fully insulated |
| Colour |
Yellow |
| Tab Width |
6.3mm |
| Tab Thickness |
0.8mm |
| Gender |
Female |
| Body Orientation |
Straight |
| Colour insulation |
Yellow |
| Conductor cross-section, max. |
6mm² |
| Conductor cross-section, min. |
4mm² |
| Connector thickness |
0.8mm |
| Connector Width |
6.3mm |
| Cross-section range |
4 - 6mm² |
| Depth |
8.2mm |
| Depth (inches) |
0.3228 inch |
| Description of article |
Fully-insulated tab- |
| Dimension |
6.3 x 0.8 mm |
| Dimension (flat blade connector) |
6.3 x 0.8 mm |
| GTIN (EAN) |
4032248410507 |
| Halogen free |
true |
| Identification colour |
yellow |
| Industrial packaging |
Yes |
| Insulation Type |
Insulated |
| Material |
Copper |
| Material/plastic |
PVC |
| max. cross section |
6mm² |
| Max. current (Imax) |
44 |
| Min. cross section |
4mm² |
| Misc Attribute 2 |
LIF6F638 RF |
| Mounting |
Cable Mount |
| Net weight |
1.9g |
| Nominal cross section |
4 - 6 |
| Plastic collar diameter (D) |
6.8mm |
| Plastic collar length (b) |
13mm |
| Plug dimensions |
Flat 6.3x0.8mm |
| Plug-in density (d3) |
0.8mm |
| Plug-in width (d2) |
6.3mm |
| Product Depth (mm) |
8.2 |
| Product Length (mm) |
24.5 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Size |
6.3 x 0.8 mm |
| Termination Method |
Crimp |
| Type |
Blade receptacle |
| Version |
cable lug, terminal end,Insulated cable connec- |
| Weight |
1.9g |
| Width |
24.5mm |
| Width (inches) |
0.9646 inch |
| Wire Size |
9-11AWG |
| With cam clamp |
false |
| With tap spreader |
true |
