Weidmuller 9200540000 Blade Receptacle 6.3x0.8mm 180° Red 100 pieces

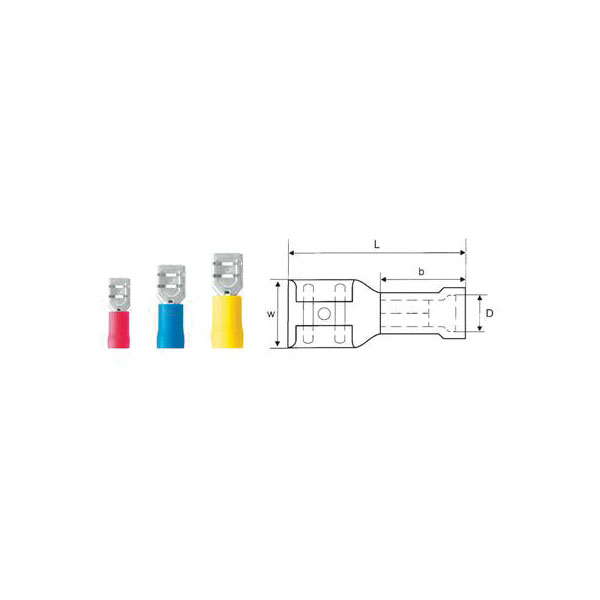

Image Representative of Range

Weidmuller 9200540000 Blade Receptacle 6.3x0.8mm 180° Red 100 pieces

Weidmuller
Order Code:

13-5145

Brand: Weidmuller MPN: 9200540000 EAN-13: 4032248410385
Qty Unit Price (Ex VAT)
1+ £7.21
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
38 in stock, despatched in 4 working days

Weidmüller's 9200540000 is a partially insulated blade receptacle with a connector width of 6.3 mm and a thickness of 0.8 mm. It is typically used in crimping applications for secure and reliable electrical connections. This product is suitable for various industrial goods and comes packaged in units of 100.
Insulation PVC
Colour Red
Body Orientation Straight
Colour insulation Red
Conductor Cross-section 1.5 mm²
Conductor cross-section, max. 1.5 mm²
Conductor cross-section, min. 0.5 mm²
Connection Angle 180°
Connector thickness 0.8mm
Connector Width 6.3mm
Cross-section range 0.5 - 1.5 mm²
Depth 7.7mm
Depth (inches) 0.3031 inch
Description of article Insulated tab-connector
Dimension 6.3 x 0.8 mm
Dimension (flat blade connector) 6.3 x 0.8 mm
ECLASS 14.0 27-44-03-92
ECLASS 15.0 27-44-03-92
ETIM 10.0 EC000516
ETIM 8.0 EC000516
ETIM 9.0 EC000516
GTIN (EAN) 4032248410385
GTIN (EAN) 4008190044527 crimping, Double crimp
GTIN (EAN) 4008190159412 Double crimp
GTIN (EAN) 4032248517855 Oval crimping, Parallel crimp
Halogen free true
Identification colour red
Industrial packaging Yes
Insulation Type Partially insulated
Material Copper
Material/plastic PVC
max. cross section 1.5mm²
Max. current (Imax) 18
Min. cross section 0.5mm²
Misc Attribute LIF 1,5F638 R
Mounting Cable Mount
Net weight 0.95g
Nominal cross section 0.5 - 1.5
Plastic collar diameter (D) 4mm
Plastic collar length (b) 10mm
Plug dimensions Flat 6.3x0.8mm
Plug-in density (d3) 0.8mm
Plug-in width (d2) 6.3mm
Product Depth (mm) 7.7
Product Length (mm) 20.8
REACH SVHC No SVHC above 0.1 wt%
ROHS Conform
RoHS Compliance Status Compliant without exemption
Size 6.3 x 0.8 mm
Termination Method Crimp
Type Blade receptacle
Version cable lug, terminal end,Insulated cable connec-
Width 20.8mm
Width (inches) 0.8189 inch
Wire Size 15-20AWG
With cam clamp false
With tap spreader true
