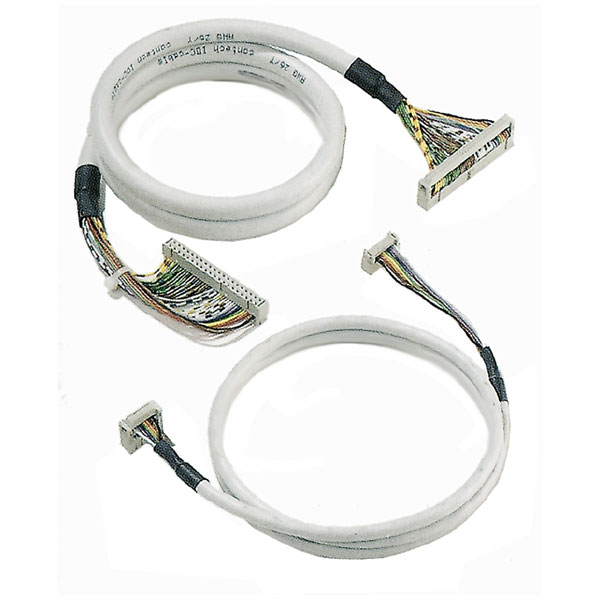

Weidműller 8235440000 Digital Signals Cable Reliable High-Quality Design

Weidmüller 8235440000 cable is engineered for reliable digital signal transmission with a focus on high-quality design. It is suitable for use in industrial automation applications. The product ensures stable connectivity, meeting stringent application requirements.

Colour	Grey
Type	Cable
Basic material	PVC
Cable	Cable LiYY
Cable Length	5 m
Connector PLC side	FLAT CABLE CONECTOR
Delivery status	Discontinued
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
GTIN (EAN)	4008190264666
Interface connector	FLAT CABLE CONECTOR
Net weight	310g
Number of poles, min.	10-pole
Permissible current strength per path,	1 A
Rated voltage	< 50 V AC, = 50 V DC
REACH SVHC	No SVHC above 0.1 wt%
Resistance	55 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Storage temperature	-10...70°C
Suitable For	Digital signals
Total current, max.	3 A
Version	Pre-assembled cable, FBK, FLAT CABLE CONEC-
Wire cross-section	0.14mm²
