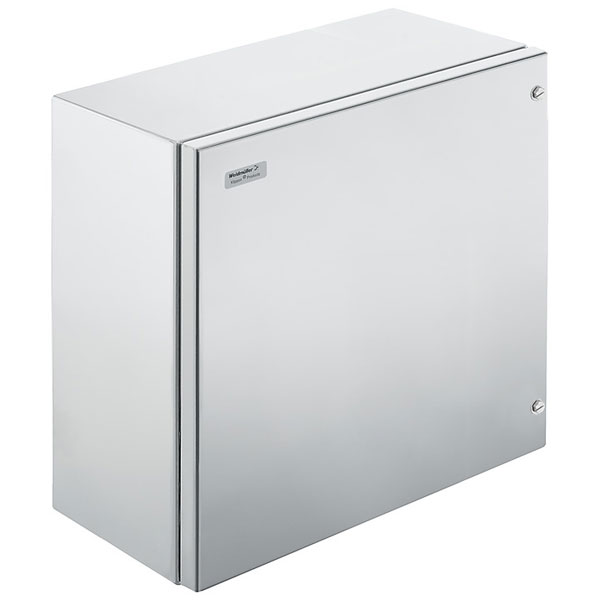

Weidmüllers Klippon EBi HS Industrial Housing, model 8000090346, is a robust enclosure designed for protecting sensitive electrical components in harsh industrial environments. Its durable construction allows for secure installation in both indoor and outdoor settings, ensuring reliability and longevity. Typical applications include use in factories and plants where environmental protection and secure housing for electrical systems are critical.
| Type |
Housing |
| Material |
Stainless steel |
| Colour |
Stainless steel |
| Basic material |
Stainless steel 1.4301 |
| Corner model |
false |
| Couplable |
true |
| Declaration of Conformatiy No. (DoC |
DE PS2650 220428 |
| Degree of protection (IP) |
IP66 |
| Depth |
200 |
| Depth (inches) |
7.874 inch |
| ECLASS 14 |
27-18-01-01 |
| ECLASS 15.0 |
27-18-01-01 |
| EMC-version |
false |
| Enclosure attachment |
Installation through the |
| ETIM 10 |
EC000261 |
| ETIM 8.0 |
EC000261 |
| ETIM 9.0 |
EC000261 |
| Flange plate |
No |
| Floor standing wall model |
false |
| Freestanding |
false |
| GTIN (EAN) |
4064675855606 |
| Height |
400 |
| Height (inches) |
15.748 inch |
| Impact resistance |
10 J version standard |
| Impact strength |
IK09 |
| Intermediate mounting |
false |
| Lid attachment |
M5 hexagonal screw with |
| LVD) |
001ISS01 |
| M25 |
24 |
| M40 |
10 |
| M50 |
4 |
| M63 |
3 |
| Material quality |
Stainless steel 304 (V2A) |
| Material thickness of cover |
1.5mm |
| Material thickness of enclosure |
1.5mm |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-40°C |
| Mounting plate depth-adjustable |
false |
| Net weight |
8421.99g |
| Note: protection class |
IP protection is only given |
| Number of doors |
1 |
| Number of locks |
2 |
| Operating Temperature |
-40 °C...85°C |
| Pitched roof |
false |
| Pole fastening |
false |
| Protection degree |
IP66 |
| RAL-number |
7001 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Seal material |
Chloroprene |
| Silicone |
No |
| Suitable for metrical mounting |
true |
| Suitable for outdoor set-up |
true |
| Suitable for wall built-in |
true |
| Suitable for wall mounting |
true |
| Surface finish |
untreated |
| Surface finishing |
Untreated |
| Version |
Klippon EBi HS (Essential Box industrial - Hinged |
| WDU 10 / ZDU 10 |
2x30 |
| WDU 16 / ZDU 16 |
2x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 |
3x59 |
| WDU 4 / ZDU 4 |
3x49 |
| WDU 6 / ZDU 6 |
2x37 |
| Width |
400 |
| Width (inches) |
15.748 inch |
| With glazed door |
false |
| With mounting plate |
false |
| With rear door |
false |
| With ventilation door |
false |
