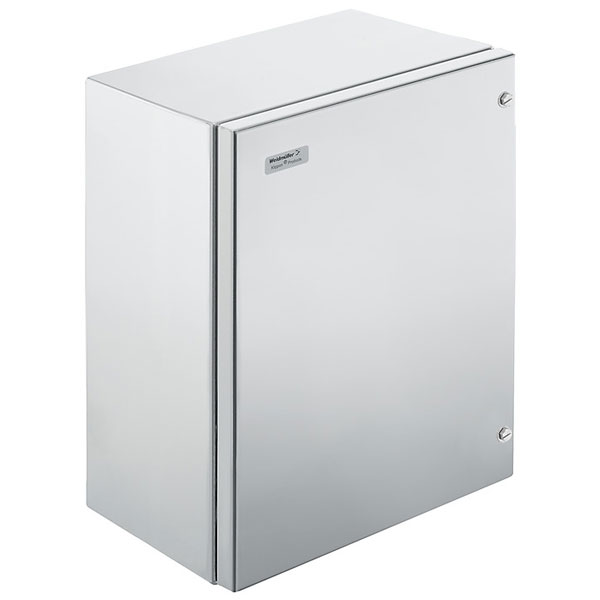

Weidmuller manufactures the 8000090345 Housing Klippon EBi HS, which is a robust and durable industrial box designed for harsh environments. It features high-performance sealing to protect sensitive components and is suitable for electrical and electronic installations. This type of housing is typically used in control systems, automation processes, and machinery protection.
| Type |
Housing |
| Material |
Stainless steel |
| Colour |
Stainless steel |
| Basic material |
Stainless steel 1.4301 |
| Corner model |
false |
| Couplable |
true |
| Declaration of Conformatiy No. (DoC |
DE PS2650 220428 |
| Degree of protection (IP) |
IP66 |
| Depth |
200 |
| Depth (inches) |
7.874 inch |
| ECLASS 14 |
27-18-01-01 |
| ECLASS 15.0 |
27-18-01-01 |
| EMC-version |
false |
| Enclosure attachment |
Installation through the |
| ETIM 10 |
EC000261 |
| ETIM 8.0 |
EC000261 |
| ETIM 9.0 |
EC000261 |
| Flange plate |
No |
| Floor standing wall model |
false |
| Freestanding |
false |
| GTIN (EAN) |
4064675855491 |
| Height |
400 |
| Height (inches) |
15.748 inch |
| Impact resistance |
10 J version standard |
| Impact strength |
IK09 |
| Intermediate mounting |
false |
| Lid attachment |
M5 hexagonal screw with |
| LVD) |
001ISS01 |
| Material quality |
Stainless steel 304 (V2A) |
| Material thickness of cover |
1.5mm |
| Material thickness of enclosure |
1.5mm |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-40°C |
| Mounting plate depth-adjustable |
false |
| Net weight |
6917.68g |
| Note: protection class |
IP protection is only given |
| Number of doors |
1 |
| Number of locks |
2 |
| Operating Temperature |
-40 °C...85°C |
| Pitched roof |
false |
| Pole fastening |
false |
| Protection degree |
IP66 |
| RAL-number |
7001 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Seal material |
Chloroprene |
| Silicone |
No |
| Suitable for metrical mounting |
true |
| Suitable for outdoor set-up |
true |
| Suitable for wall built-in |
true |
| Suitable for wall mounting |
true |
| Surface finish |
untreated |
| Surface finishing |
Untreated |
| Version |
Klippon EBi HS (Essential Box industrial - Hinged |
| Width |
300 |
| Width (inches) |
11.811 inch |
| With glazed door |
false |
| With mounting plate |
false |
| With rear door |
false |
| With ventilation door |
false |
