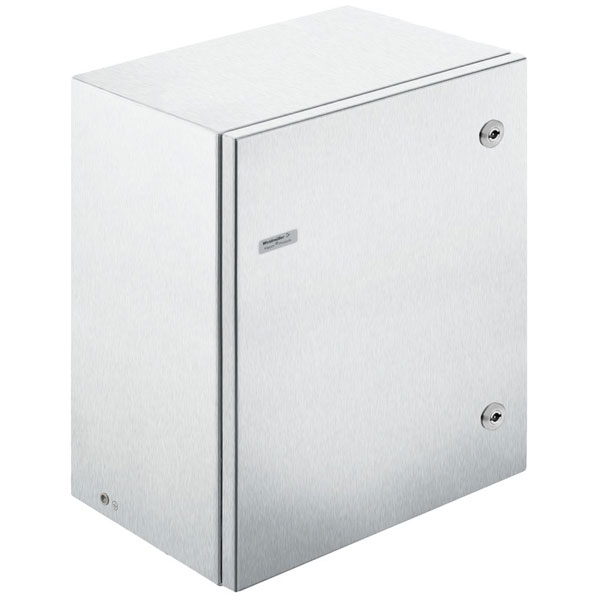

Weidműller 8000071038 Housing Brushed 400x500x300mm

Weidmüller produces a brushed housing measuring 400x500x300mm. It is designed for protecting electronic assemblies from environmental factors. Typical applications include industrial automation and control systems.

Type	Housing
Access opening: height	449.6mm
Access opening: width	343.6mm
AF size	10mm
Approval conditions	ATEX, IECEX, INMETRO
Areas of use	Chemical industry,
Attestation of Conformatiy No. (AoC)	DE PS265x 210819
Basic material	Stainless steel 1.4404
Certificate no. empty enclosure	LMP 21.0601U
Certificate no. empty enclosure (ATEX) IBExU 21ATEX 1016 U	Certificate no. Terminal Box (INMETRO) LMP 21.0602X
Certificate no. Terminal Box (ATEX)	IBExU 21ATEX 1017 X
Certificate no. Terminal Box (IECEx)	IECEx IBE 21.0012
Declaration of Conformatiy No. (DoC	DE PS265X 210819
Depth	300mm
Depth (inches)	11.811 inch
Earth, enclosure, internal	Welded-on M6 stainless-
ECLASS 14	27-18-05-02
ECLASS 15.0	27-18-05-02
Enclosure attachment	4 or 6, M6 blind thread
ETIM 10	EC002503
ETIM 8.0	EC002503
ETIM 9.0	EC002503
Flange plate	Yes
Flange plate mounting	M6 hexagonal head
Gland plates	Bottom
GTIN (EAN)	4064675385134
Height	500mm
Height (inches)	19.685 inch
hole on backside;	screws 10 SW
Impact resistance	7 J ATEX version, 10 J
Integral fixing	4, 6 or 9 stud bolts M6
Lid	Yes
Lid attachment	Quarter-turn fastener with
LVD)	001ISS01
Material thickness	1.5mm
Material thickness of cover	1.5mm
Material thickness of flange	3mm
Max. payload	20kg
Maximum Operating Temperature	135°C
Minimum Operating Temperature	-55°C
Mounting dimension - height	460mm
Mounting dimension - width	360mm
Net weight	14157.87g
Opening angle lid	125.00°
Operating Temperature	-55 °C...135°C
Position PE bolts	Enclosure side C
Product information	All articles with M6 threaded rivet as standard; UL variants with M10 earth bolt on request
Protection class (UL)	Type 1, Type 4, Type 4X
Protection degree	IP66
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Seal material	Silicone (cover + flange)
Standards	EN 60079-0, IEC 60079-0,
Surface finish	Brushed
Version	Klippon EBx QL (Essential Box Ex - Quarter Lock),
Width	400mm
Width (inches)	15.748 inch
