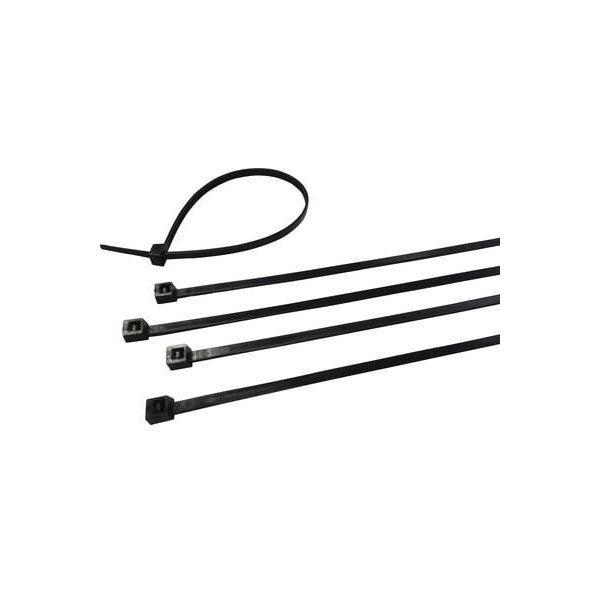

Weidmüller's 7940006059 CB 390/4.8 cable tie is 390 mm long and 4.5 mm wide, and comes in black. It is ideal for cable bundling and management, ensuring organised and secure arrangements. This industrial good is available in packaging units containing 100 pieces, perfect for production environments.
| Length |
390mm |
| Width |
4.5mm |
| Colour |
Black |
| Material |
PA66 |
| Type |
Cable Ties |
| Band width |
4.5 |
| Basic material |
Polyamide 66 |
| Body Material |
Polyamide 6/6 |
| Bundle diameter |
106 - 3.5 |
| Bundle diameter, max. |
106mm |
| Bundle diameter, min. |
3.5mm |
| Cable diameter, max. |
106mm |
| Certificate No. (UR) |
E317499 |
| Color |
Black |
| Depth |
1.5mm |
| Depth (inches) |
0.0591 inch |
| Dimensions |
(W x H) 4.5 mm x 390 mm |
| ECLASS 14.0 |
27-14-07-02 |
| ECLASS 15.0 |
27-14-07-02 |
| ETIM 10.0 |
EC000046 |
| ETIM 8.0 |
EC000046 |
| ETIM 9.0 |
EC000046 |
| Fluorescent |
false |
| For re-opening |
No |
| Gearing |
Inside |
| GTIN (EAN) |
4032248520367 |
| Halogen |
No |
| Halogen free |
true |
| Height |
390mm |
| Height (inches) |
15.3543 inch |
| Inflammability class of insulation material according to UL94 |
V2 |
| Length belt/tape/tie |
390 |
| Material quality |
Polyamide (PA) |
| Max Operating Temperature |
85°C |
| Max. bundle diameter |
106mm |
| Max. sheet thickness |
1.50mm |
| Max. temperature |
+85°C |
| Min Operating Temperature |
-40°C |
| Min. temperature |
-40°C |
| Minimum holding force |
220N |
| Mounting temperature |
10 - 60 |
| Net weight |
2.5g |
| Operating Temperature |
-40 - 85 |
| Operating Temperature Range |
-40...85°C |
| Operating temperature range, max. |
85°C |
| Operating temperature range, min. |
-40°C |
| Product information |
Number of bags in box (pieces): 35 |
| Product Length (mm) |
390 |
| Qty. |
3500 items |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Releasable closure |
false |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Surface protection |
Plastic-coated |
| Tensile Strength |
220 N |
| Tensile strength (Pound-force) |
49 lbf |
| Text strip |
None |
| Tie thickness |
1.5 |
| Transparent |
false |
| Type of fastening |
Other |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| UV-resistant |
No |
| UV-stable according to ASTM D6779 |
false |
| Version |
Cable ties, 4.5 x 390 mm, Polyamide 66, 220 N |
| Width (inches) |
0.1772 inch |
