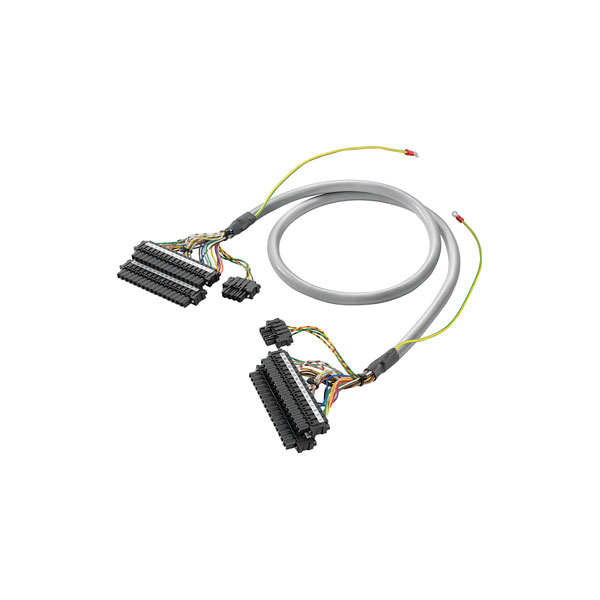

Weidműller 7789884100 Cable Digital Signals for Precise Connections

Weidmüllers 7789884100 cable is designed for precise digital signal transmission, offering reliable connections in various industrial applications. The cable is well-suited for high-frequency data transfer and is commonly used in automation systems and process control environments. Engineers can expect robust performance, even in challenging conditions, ensuring system accuracy and efficiency.

Colour	Grey
Type	Cable
Available until	2014-05-20T00:00:00+02:00
Basic material	PVC
Cable	Cable LiYCY
Cable Length	10 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	2 x BLC 5.08/16/180BR
Delivery status	Discontinued
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
GTIN (EAN)	4032248144273
High voltage test	1 KV/1s
Interface connector	2 x BLC 5.08/16/180BR
Net weight	2028g
Number of poles, min.	36-pole
Operating Temperature	-10...50
Operating Voltage	= 250 V DC = 250 V AC
Outer Diameter	11,85 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 250 Vdc = 250 Vac
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Digital signals
Total current, max.	3 A
Version	Pre-assembled cable, PAC, Cable LiYCY, 0.25mm²
Wire cross-section	0.25mm²
