Weidműller 7789763030 SAI Cable Digital Signals Robust Durable Design

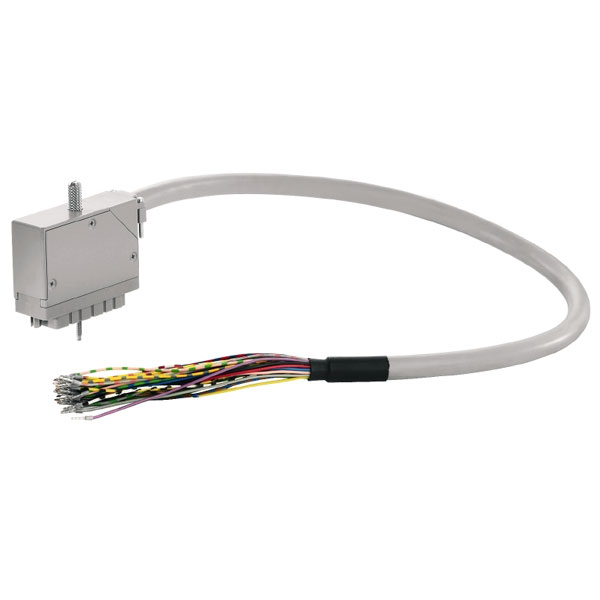

Weidmüller PAC-ELCO38-F38-F-3M is a PLC-wire, Digital signals, 38-pole, Cable LiYCY, 3 m, 0.25 mm². Assembled cable for electrical connection and information transmission between the PLC and a PLC interface.

Colour	Grey
Length	3
Type	Pre-assembled cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	3 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	H0.25/10 (FERRULES
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
Function	PLC - other devices
GTIN (EAN)	4032248190973
High voltage test	1 KV/1s
Interface connector	Conector ELCO Female
Net weight	1624.86g
Number of Poles	38
Number of poles, min.	38-pole
Operating Temperature	-10...50
Operating Voltage	250 V
Outer Diameter	12.4 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	250 V
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Digital signals
Suitable for analogue signals	false
Suitable for digital signals	true
Suitable for input board PLC	false
Suitable for output card PLC	false
Total current, max.	3 A
Type of electrical connection, box-sided	Cable end sleeve
Type of electrical connection, field-sided	Connection plug board
Version	Pre-assembled cable, PAC, Pre-assembled cable,
Wire cross-section	0.25mm²
