Weidműller 2747430000 Connector 1.27mm Male Unshrouded Compact Design

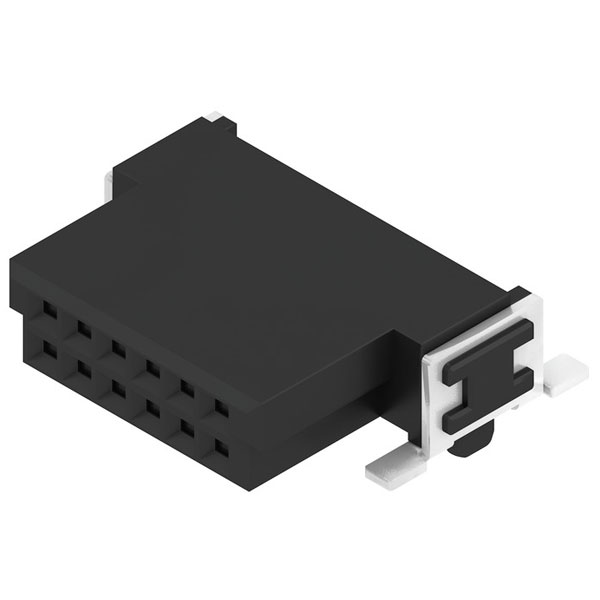

Weidmüller FFH S1/12H F1 B RL is a PCB connector (board connection), 2.8 A, Pitch in mm: 1.27, Number of poles: 12, SMD solder connection, Tape. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.

Pitch	1.27mm
Angle PCB/contact	0°/180° (horizontal)
Certificate No. (cURus)	E92202
Clearance, min.	0.4mm
Colour	black
Colour chart (similar)	RAL 9011
Connector model	Fixed connector
Contact Base Material	Copper alloy
Contact Material	Cu-alloy
Contact surface	Gold over nickel
Contact Type	Bus
Coplanarity:	0.1mm
Creepage distance, min.	0.4mm
Depth	10.9mm
Depth (inches)	0.4291 inch
ECLASS 14.0	27-46-02-01
ECLASS 15.0	27-46-02-01
ETIM 10.0	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
GTIN (EAN)	4064675000488
GTIN (EAN) 4064675001089	mm (P): 1.27 mm, Number of poles: 12, 90°, Tape
GTIN (EAN) 4064675001317	mm (P): 1.27 mm, Number of poles: 12, 180°, Tape
GTIN (EAN) 4064675001447	mm (P): 1.27 mm, Number of poles: 12, 180°, Tape
Height	3.7mm
Height (inches)	0.1457 inch
Housing Colour	Black
Inflammability class of insulation material according to UL94	V0
Insulating material	LCP
Insulating material group	IIIa
Insulation Resistance	= 10¹° O
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
Layer structure of plug contact	= 2 µm Ni / = 0.4 µm
Material insulation body	Liquid crystal polymer
Material of contact surface	Gold
Modular spacing connections	1.27
Modular spacing contacts	1.27
Moisture Level (MSL)	1
Mounting onto the PCB	SMD solder connection
Net weight	1.22g
Number of plug-in contact rows	2
Number of Poles	12
Number of Rows	1
Number of solder pins per pole	1
Operating Temperature	-55 - 125
Operating temperature, max.	125°C
Operating temperature, min.	-55°C
Outgoing elbow	90°
Packaging	Tape
Pin series quantity	2
Pitch in inches (P)	0.050 "
Pitch in mm (P)	1.27mm
Plugging cycles	500
Plugging force/pole, max.	0.6 N
Product data	IEC: / 2.8 A
Product family	OMNIMATE Signal - Board-
Protection degree	IP20
Pulling force/pole, max.	0.6 N
Rated current, min. number of poles	2.8 A
Rated voltage (UL 1977) (obsolete)	150 V
REACH SVHC	No SVHC above 0.1 wt%
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Transmission rate	3.125 Gbit/s
Type	PCB Connector
Type of banding	Other
Type of connection	Flexible PCB-connector
Type of electric connection	THR connection
Type of fastening	Solder
Type of PCB fastening	Other
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, female header, SMD solder
Volume resistance	<25 mO
VPE height	29.00mm
VPE length	328.00mm
VPE width	328.00mm
Width	12.7mm
Width (inches)	0.5 inch
