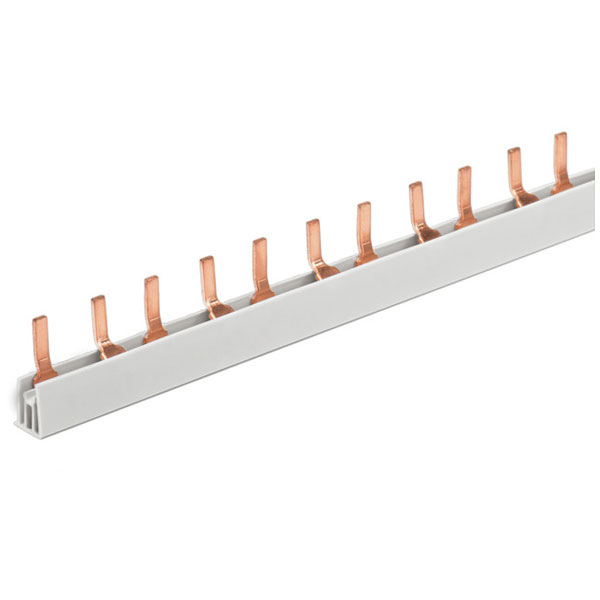

Weidműller 2658290000 Cross-connector Male Unshrouded 10-Pole

Weidmüllers 2658290000 is a male unshrouded cross-connector featuring 10 poles. It is designed for efficient electrical connectivity and can be applied in various industrial automation systems. This component supports reliable signal transmission and distribution in control cabinets.

Accessory Type	Connector
Used With	Any
Ambient temperature	-5 °C…40°C
Available until	2025-06-01T00:00:00+02:00
Colour	grey
Delivery status	Discontinued
Depth	9.3mm
Depth (inches)	0.3661 inch
ECLASS 14	27-37-13-06
ECLASS 15.0	27-37-13-06
ETIM 10	EC000215
ETIM 8.0	EC000215
ETIM 9.0	EC000215
Explosion-tested version	No
GTIN (EAN)	4050118672237
Height	27mm
Height (inches)	1.063 inch
Net weight	58g
Nominal Current	63 A
Number of Poles	46
Pitch in mm (P)	17.80mm
Rated cross-section	10mm²
Rated voltage	400 V
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Version	Phase busbar (Terminals), 63, Number of poles:
Width	1016mm
Width (inches)	39.9999 inch
