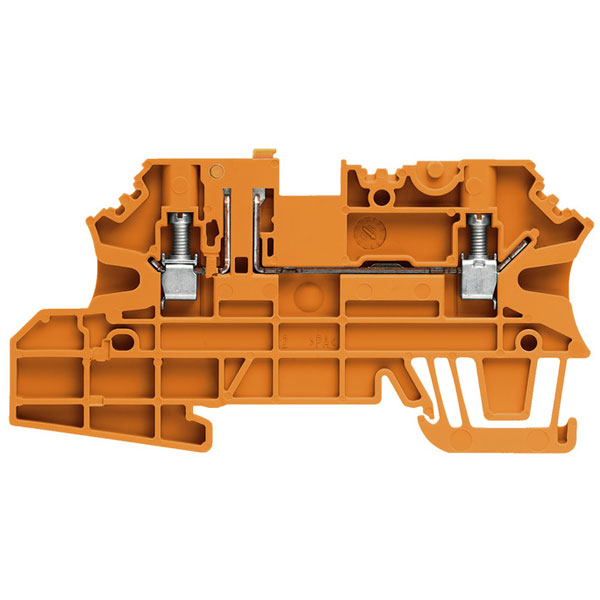

Weidműller 2492370000 Terminal 2.5mm Compact Female Unshrouded

Weidmüller produces the terminal 2.5mm compact female unshrouded unit known for its versatility in electrical connections. It is primarily characterised by its compact form and suitability for unshrouded applications often utilised in control cabinets. Typical usage includes providing reliable electrical connections in automation technology.

Type	Terminal
Pitch	5.2mm
No. of Ways	2
Width	5.08mm
Wire Gauge (mm²)	2.5mm²
46228/1, max.	46228/1, min.
46228/4, max.	46228/4, min.
60947-7-x	60947-7-x
Ambient temperature	-50 °C…75°C
Basic material	Wemid
Certificate No. (ATEX)	DEMKO14ATEX1389U
Certificate No. (cURusEX)	E184763
Certificate No. (IECEX)	IECEXUL14.0097U
Clamping range, max.	4mm²
Clamping range, min.	0.5mm²
Closing plate required	true
Colour	Orange
Colour of operational elements	orange
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 4
Connectable conductor cross section multi-wired	0.5 - 4
Connectable conductor cross section solid-core	0.5 - 4
Connection cross-section, finely	0.5mm²
Connection cross-section, stranded,	4mm²
Connection direction	on side
Continuous operating temp., max.	120°C
Continuous operating temp., min.	-50°C
core, max.	core, min.
Current (ATEX)	18.5 A
Current (IECEX)	18.5 A
Depth	44.5
Depth (inches)	1.752 inch
ECLASS 14.0	27-25-01-09
ECLASS 15.0	27-25-01-09
End cover plate required	Yes
ETIM 10.0	EC000902
ETIM 8.0	EC000902
ETIM 9.0	EC000902
Ex 2014/34/EU label	II 3 G D
GTIN (EAN)	4050118501674
GTIN (EAN) 4008190397111	Weidmueller, white
GTIN (EAN) 4032248113897	pluggable, V-0, Wemid
GTIN (EAN) 4032248113903	pluggable, V-0, Wemid
GTIN (EAN) 4032248113972	pluggable, V-0, Wemid
GTIN (EAN) 4032248223862	Allen-Bradley, white
GTIN (EAN) 4032248264643	pluggable, V-0, Wemid
GTIN (EAN) 4032248322503	pluggable, V-0, Wemid
GTIN (EAN) 4032248322633	pluggable, V-0, Wemid
GTIN (EAN) 4032248925889	V-0, Wemid, Snap-on: Yes
GTIN (EAN) 4050118411362	50, Pitch in mm (P): 5.10, Insulated: Yes, Width: 255mm
GTIN (EAN) 4050118447972	20, Pitch in mm (P): 5.10, Insulated: Yes, Width: 102mm
GTIN (EAN) 4050118447989	10, Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.7mm
GTIN (EAN) 4050118447996	9, Pitch in mm (P): 5.10, Insulated: Yes, Width: 43.6mm
GTIN (EAN) 4050118448405	8, Pitch in mm (P): 5.10, Insulated: Yes, Width: 38.5mm
GTIN (EAN) 4050118448412	7, Pitch in mm (P): 5.10, Insulated: Yes, Width: 33.4mm
GTIN (EAN) 4050118448429	6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 28.3mm
GTIN (EAN) 4050118448436	5, Pitch in mm (P): 5.10, Insulated: Yes, Width: 23.2mm
GTIN (EAN) 4050118448443	4, Pitch in mm (P): 5.10, Insulated: Yes, Width: 18.1mm
GTIN (EAN) 4050118448450	3, Pitch in mm (P): 5.10, Insulated: Yes, Width: 13mm
GTIN (EAN) 4050118448467	2, Pitch in mm (P): 5.10, Insulated: Yes, Width: 7.9mm
GTIN (EAN) 4050118448474	Pitch in mm (P): 5.10, Insulated: Yes, Width: 43.6mm
GTIN (EAN) 4050118448481	Pitch in mm (P): 5.10, Insulated: Yes, Width: 38.5mm
GTIN (EAN) 4050118448498	Pitch in mm (P): 5.10, Insulated: Yes, Width: 33.4mm
GTIN (EAN) 4050118448504	Pitch in mm (P): 5.10, Insulated: Yes, Width: 28.3mm
GTIN (EAN) 4050118448511	Pitch in mm (P): 5.10, Insulated: Yes, Width: 23.2mm
GTIN (EAN) 4050118448528	Pitch in mm (P): 5.10, Insulated: Yes, Width: 18.1mm
GTIN (EAN) 4050118448535	Pitch in mm (P): 5.10, Insulated: Yes, Width: 13mm
GTIN (EAN) 4050118448542	Pitch in mm (P): 5.10, Insulated: Yes, Width: 7.9mm
GTIN (EAN) 4050118448559	Pitch in mm (P): 5.10, Insulated: Yes, Width: 255mm
GTIN (EAN) 4050118448566	Pitch in mm (P): 5.10, Insulated: Yes, Width: 102mm
GTIN (EAN) 4050118448573	Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.7mm
GTIN (EAN) 4050118448580	Pitch in mm (P): 5.10, Insulated: Yes, Width: 43.6mm
GTIN (EAN) 4050118448597	Pitch in mm (P): 5.10, Insulated: Yes, Width: 38.5mm
GTIN (EAN) 4050118448603	Pitch in mm (P): 5.10, Insulated: Yes, Width: 33.4mm
GTIN (EAN) 4050118448610	Pitch in mm (P): 5.10, Insulated: Yes, Width: 28.3mm
GTIN (EAN) 4050118448627	Pitch in mm (P): 5.10, Insulated: Yes, Width: 23.2mm
GTIN (EAN) 4050118448634	Pitch in mm (P): 5.10, Insulated: Yes, Width: 18.1mm
GTIN (EAN) 4050118448641	Pitch in mm (P): 5.10, Insulated: Yes, Width: 13mm
GTIN (EAN) 4050118448658	Pitch in mm (P): 5.10, Insulated: Yes, Width: 7.9mm
GTIN (EAN) 4050118485899	Pitch in mm (P): 5.10, Insulated: Yes, Width: 102mm
GTIN (EAN) 4050118486001	Pitch in mm (P): 5.10, Insulated: Yes, Width: 255mm
GTIN (EAN) 4050118486018	Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.7mm
Height	88
Height (inches)	3.4646 inch
Inflammability class of insulation material according to UL94	V0
Internally connected stages	false
Levels cross-connected internally	No
Marking EN 60079-7	Ex ec II C Gc
Material insulation body	Thermoplastic
max.	min.
Max. voltage (ATEX)	500 V
Max. voltage (IECEX)	500 V
Mounting method	DIN rail (top hat rail) 35mm
Mounting rail	TS 35
Net weight	10.7g
N-function	No
Nominal Current	24 A
Number of clamp positions per level	2
Number of clamping points per level	2
Number of connections	2
Number of levels	1
Number of potentials	1
Operating Temperature	-50 - 120
PE connection	No
PE function	No
PEN function	No
Pollution severity	3
Power loss in accordance with IEC	0.77 W
Rated cross-section	2.5mm²
Rated current In	24
Rated DC voltage	500 V
Rated voltage	500
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Snap-on	Yes
Storage temperature	-25 °C...55°C
stranded with wire-end ferrules DIN	stranded with wire-end ferrules DIN
stranded, max.	stranded, min.
Surge voltage category	III
Type of connection	Screw connection
Type of connection 2	Screw connection
Type of cross disconnection	Sliding
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Type of mounting	Snap-on
Type of slitting	Swivelling
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Volume resistance according to IEC	1.33 mO
Width (inches)	0.2 inch
Wire cross section max. (ATEX)	2.5mm²
Wire cross section max. (IECEX)	2.5mm²
With integrated test socket	false
