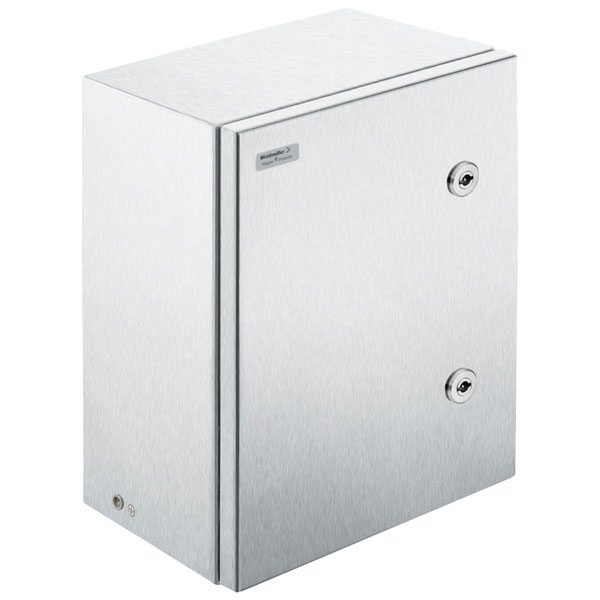

Weidmüllers Klippon EBi QL Essential Industrial Housing is known for its robust construction and reliable protection for electronic components. Typically used in demanding environments, it features high resistance to extreme temperatures and harsh conditions, ensuring safety and performance. Common applications include use in electrical engineering and automation systems.
| Type |
Housing |
| Access opening: height |
343mm |
| Access opening: width |
243mm |
| Alternative product |
KEBIQL403020S2N0 AL |
| Approval conditions |
cULus |
| Areas of use |
Harbour facilities, |
| Basic material |
Stainless steel 1.4301 |
| Certificate no. (cULus) |
E243298 |
| Declaration of Conformatiy No. (DoC |
DE PS2650 180129 |
| Depth |
220mm |
| Depth (inches) |
8.6614 inch |
| Diameter |
9mm |
| Earth, enclosure, cover |
Welded-on M6 stainless- |
| Earth, enclosure, external |
M6 earth tab rivet |
| Earth, enclosure, internal |
Welded-on M6 stainless- |
| ECLASS 14 |
27-18-01-01 |
| ECLASS 15.0 |
27-18-01-01 |
| Enclosure attachment |
Fixing lugs, Installation |
| ETIM 10 |
EC000261 |
| ETIM 8.0 |
EC000261 |
| ETIM 9.0 |
EC000261 |
| Flange plate |
No |
| GTIN (EAN) |
4050118591200 |
| Height |
400mm |
| Height (inches) |
15.748 inch |
| hinged door and double-bit key lock. |
Available until |
| Impact resistance |
10.00 J |
| Integral fixing |
Screwed |
| Lid |
Yes |
| Lid attachment |
Quarter-turn fastener with |
| LVD) |
001ISS00 |
| M75 |
2 |
| Material thickness of cover |
1.5mm |
| Material thickness of enclosure |
1.5mm |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-40°C |
| Mounting dimension - height |
350mm |
| Mounting dimension - width |
250mm |
| Net weight |
7894g |
| Opening angle lid |
125.00° |
| Operating Temperature |
-40 °C...85°C |
| Operating Temperature Range |
-40...85 ? |
| Our standard product is the Klippon® EBi QL – with |
Delivery status |
| Protection class (UL) |
Type 3, Type 4X, Type 5 |
| Protection degree |
IP66 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Seal material |
Polyurethane foamed |
| Seal material of cover |
Polyurethane foamed |
| Standards |
DIN EN 62208, IEC 60529 |
| Surface finish |
Brushed |
| tions. With the ever-increasing need for individual appli- |
Brushed, silver |
| UL File Number Search |
UL Website |
| Version |
Klippon EBi QL (Essential Box industrial - Quarter |
| Wall thickness, max. |
1.5mm |
| Wall thickness, min. |
1.5mm |
| Width |
300mm |
| Width (inches) |
11.811 inch |
