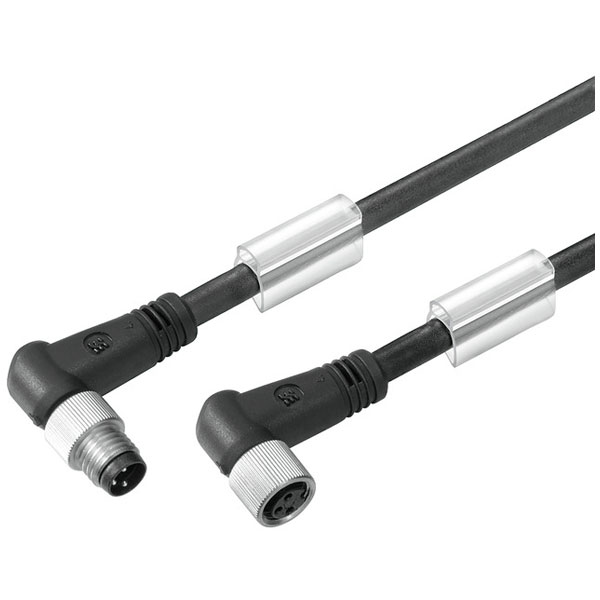

Weidmüller manufactures the 2443151000 Cable, an M8 4-pole male unshrouded cable featuring a black PVC jacket designed for durability. It is commonly used in automation and control applications due to its reliable connection capabilities.
| Length |
10 |
| Colour |
Black |
| Type |
Sensor/Actuator Cable |
| Acceleration |
5 m/s² |
| Bending cycles |
2 Mio |
| Bending radius, min., moving |
12 x conductor cross- |
| Bending radius, min., stationary |
5 x cable diameter |
| Cable Length |
10 m |
| Cable Type |
Multi-core |
| Certificate no. (cULus) |
E307231 |
| Coding |
A-coded |
| Colour coding |
brown, black, blue, white |
| Configurable cable length |
No |
| Connection thread |
M8 |
| Contact surface |
Gold-plated |
| Continuity resistance |
0 |
| Core cross-section |
0.34mm² |
| Degree of protection (IP) |
IP65 |
| ECLASS 14 |
27-06-03-11 |
| ECLASS 15.0 |
27-06-03-11 |
| ETIM 10 |
EC001855 |
| ETIM 8.0 |
EC001855 |
| ETIM 9.0 |
EC001855 |
| GTIN (EAN) |
4050118457117 |
| Halogen |
No |
| Halogen free |
true |
| Housing main material |
PUR |
| Insulation |
PP |
| Insulation Resistance |
108 O |
| Irradiation crosslinked |
No |
| jumpered |
No |
| LED |
No |
| Material of cable sheath |
Polyurethane (PUR) |
| Material of contact surface |
Gold |
| Net weight |
425g |
| Nominal Current |
4 A |
| Nominal Voltage |
30 V |
| Number of Poles |
4 |
| Outer cladding in accordance with UL |
20549 (80 °C / 300 V) |
| Outside Diameter |
5.1 mm ± 0.2mm |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80 |
| Permitted cable outer temperature during assembling/handling |
-25 - 80 |
| Plug left |
M8, IP69, male contact, |
| Plug right |
M8, IP69, female contact, |
| Plugging cycles |
= 100 |
| Pollution severity |
3 |
| Positioning cable feed, box-sided |
Right-angled |
| Positioning cable feed, field-sided |
Right-angled |
| Protection degree |
IP65, IP66, IP67, IP68, |
| Qty. |
1 items |
| Rated current In |
4 |
| Rated voltage |
30 |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance to spread of flame |
in accordance with IEC |
| Resistant to welding beads |
No |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Screened |
true |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Shielded |
Yes |
| Speed |
100 m/s |
| Suitable for cable carriers |
Yes |
| Temperature range of housing |
-25…+85°C |
| Temperature range, moving |
-25...80°C |
| Temperature range, stationary |
-40...80°C |
| Threaded ring material |
Diecast zinc |
| Tightening torque |
M8: 0.6 Nm |
| Torsion resistance |
0 °/m |
| Type of electrical connection, box-sided |
M8 |
| Type of electrical connection, field-sided |
M8 |
| Type of plug-in contact, box-sided |
Male (plug) |
| Type of plug-in contact, field sided |
Female (bus) |
| UL File Number Search |
UL Website |
| Vulcanized |
false |
| Welding spark resistance |
No |
| Wiring diagram |
The ideal tool: Screwty ® with torque function |
| With LED indication |
false |
