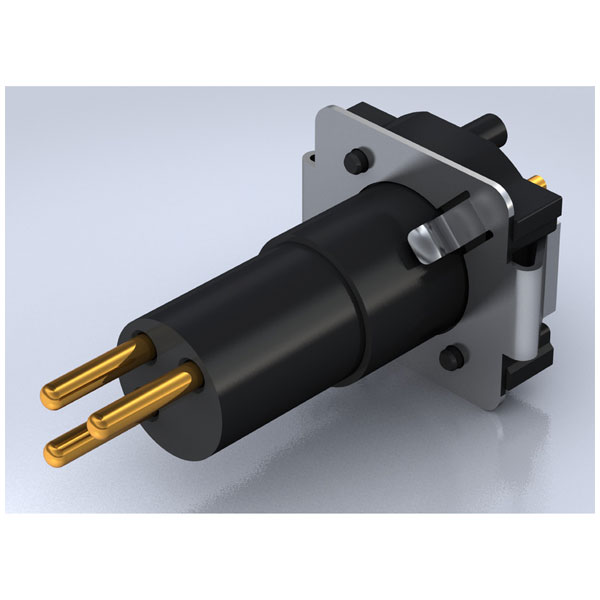

Weidműller 2423850000 Contact Pin Solder Connection Male Unshrouded

Weidmüller manufactures the 2423850000 contact pin with a solder connection designed for male unshrouded interfaces. This connector is known for reliability in signal and data transmission applications, especially in industrial electronics. Its ideal for use in automated systems requiring secure and efficient electrical connections.

No. of Rows	2
Coding	M8 = none
Connection thread	M8
Contact Material	Cu-alloy
Contact surface	Au (Gold)
Dimensioned drawing	PCB design
ECLASS 14	27-44-02-23
ECLASS 15.0	27-44-02-23
ETIM 10	EC003557
ETIM 8.0	EC003557
ETIM 9.0	EC003557
GTIN (EAN)	4050118430295
Housing main material	LCP
Housings	M8 pin
Lock nut material	Nickel-plated CuZn
Net weight	1.76g
Nominal Current	4 A
Nominal Voltage	60 V
Number of Poles	3
Pin series quantity	1
Plugging cycles	= 100
Pollution severity	3 (2 within the sealed
Protection degree	IP67
Qty.	25 items
Rated current	4 A (3-, 4- and 5-pole) /
Rated voltage	60 V (3-pole) / 30 V (4-,5-
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	0ea6d931-f9e9-40a6-89d9-8d67103189d3
Shield connection	No
Temperature Range	-25…95°C
Tightening torque	M8: 0.5 Nm
Type	SAID-M8S-3S-THR
UL 94 flammability rating	V-0
Version	Built-in plugs, M8, Mounting thread: , Number of
