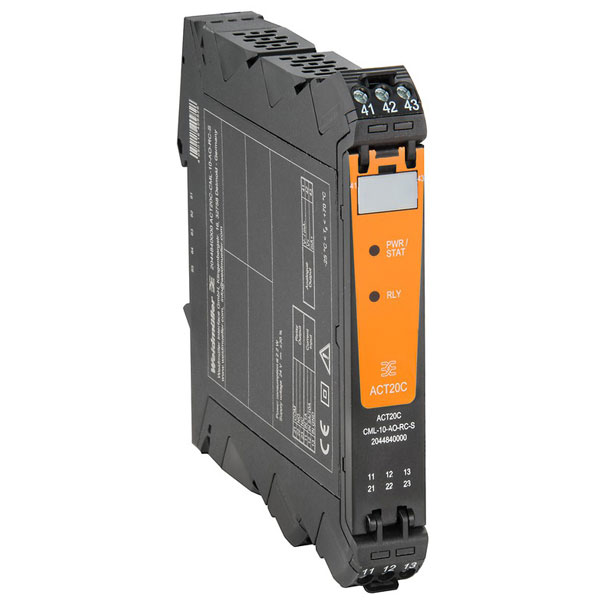

Weidmüller ACT20C-CML-10-AO-RC-S is a Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay. Current transformer for converting currents into standard analogue measured values
| Type |
Current-measuring transducer |
| (configurable) |
V, 0...5 V, 1...5 V, -5…+5 V, |
| Accuracy |
±0.3% (1/5A), ±0.6% (10A) |
| Certificate no. (cULus) |
E141197 |
| Clamping range, max. |
2.5mm² |
| Clamping range, min. |
0.5mm² |
| Clamping range, rated connection |
1.5mm² |
| Configuration |
for thresholds |
| Depth |
113.6mm |
| Depth (inches) |
4.4724 inch |
| EMC standards |
IEC 61326-1 |
| End value measuring range current |
10 |
| Frequency rated current |
50 |
| Galvanic isolation |
4-way isolator;, between |
| GTIN (EAN) |
4050118409826 |
| Height |
117.2mm |
| Height (inches) |
4.6142 inch |
| Humidity |
5...95 %, no condensation |
| Impulse withstand voltage |
6 kV (1.2/50 µs) |
| Initial value measuring range current |
0 |
| Input frequency |
AC: 15…400 Hz (true root |
| Input measurement range |
configurable, 0…1/5/10 A |
| Input signal |
Power cable can be |
| Integrated configuration function |
true |
| Load impedance current |
= 600 O |
| Load resistance current |
= 600 O |
| Load resistance voltage |
= 10 kO |
| Max. switching voltage, AC |
250 V |
| Max. switching voltage, DC |
24 V |
| mean square), AC: 50 Hz |
AC (RMS) or DC |
| Measured Current |
0–1A, 0–5A, 0–10A (AC/DC) |
| min. |
max. |
| Mounting method |
DIN rail (top hat rail) 35mm |
| Mounting rail |
TS 35 |
| MTTF |
130 a |
| Net weight |
134g |
| Nominal power consumption |
3 VA |
| Output Current |
Adjustable, 0...20 mA, |
| Output Voltage |
Adjustable, 0...10 V, 2…10 |
| Pollution severity |
2 |
| Power consumption, max. |
2.2 W |
| Product description |
The device ACT20C-CML-10-AO-RC-S measures and monitors AC and DC currents of up to 10 A. |
| Protection degree |
IP20 |
| Rated switching current |
2 A |
| Rated voltage |
300 V ACrms |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
2f6dd957-421a-46db-a0c2-cf1609156924 |
| Sensor Output Type |
DC Current/DC Voltage |
| SIL in compliance with IEC 61508 |
None |
| Step response time |
= 300 ms (RMS), = 60 ms |
| Storage temperature |
-40 °C...85°C |
| Supply Voltage |
24V DC |
| Surge voltage category |
III |
| Switching Current |
5 A |
| Temperature Coefficient |
= ±100 ppm/K @ -25… |
| Test Voltage |
4 kV |
| Tightening torque, max. |
3.5 Nm |
| Tightening torque, min. |
0.5 Nm |
| Type (analogue output) |
Voltage and current output |
| Type of analogy output |
0 - 10 V |
| Type of connection |
Screw connection |
| UL File Number Search |
UL Website |
| Version |
Current-measuring transducer, Input : 0…5/10 A, |
| Voltage Range |
0–10V DC |
| Width |
17.5mm |
| Width (inches) |
0.689 inch |
| Wire cross-section, solid, max. |
2.5mm² |
| Wire cross-section, solid, min. |
0.5mm² |
| With switching output |
true |
