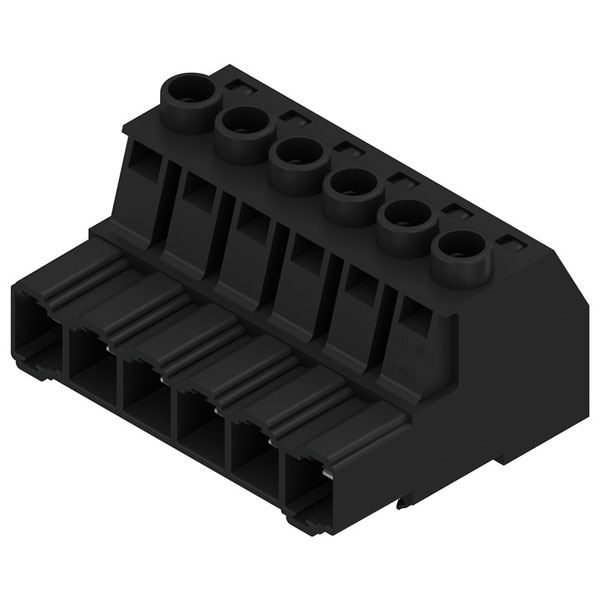

Weidmüller SUZ 10.16HP/06/180G AG BK BX is a PCB connector (wire connection), 1000 V, 78 A, Pitch in mm: 10.16, 16 mm², Number of poles: 6, Clamping yoke connection, Box. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
| Colour |
black |
| (Tu=20°C) |
(Tu=40°C) |
| (Tu=40°C) |
pollution degree II/2 |
| 57 106 |
0470 |
| Angle contact/conductor connection |
90° (upwards vertical) |
| Can be coded |
Yes |
| Certificate No. (CSA) |
200039-1121690 |
| Certificate No. (UR) |
E60693 |
| Clampable conductor |
Cross-section for conductor connection |
| Clamping range, max. |
16mm² |
| Clamping range, min. |
0.2mm² |
| Clamping screw |
M 4 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Clearance, min. |
14.8mm |
| Coating housing |
Uncoated |
| Colour chart (similar) |
RAL 9011 |
| Comparative Tracking Index (CTI) |
= 600 |
| Conductor outlet direction |
180° |
| Conductor type |
Type of conductor |
| Connectable cable type |
Tubular cable |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 16 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 16 |
| Connectable conductor cross section multi-wired |
6 - 16 |
| Connectable conductor cross section solid-core |
0.2 - 16 |
| Contact Material |
Cu-alloy |
| Contact surface |
silver-plated |
| Contact Type |
Pin |
| Creepage distance, min. |
14.8mm |
| Cross-section for conductor connection |
Type |
| Degree of protection (IP), mounted |
IP20 |
| ECLASS 14.0 |
27-46-02-02 |
| ECLASS 15.0 |
27-46-02-02 |
| ETIM 10.0 |
EC002638 |
| ETIM 8.0 |
EC002638 |
| ETIM 9.0 |
EC002638 |
| Flexible, max. H05(07) V-K |
16mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4032248659906 |
| GTIN (EAN) 4032248326716 |
of poles: 1 |
| GTIN (EAN) 4050118717389 |
of poles: 1 |
| GTIN (EAN) 4064675436874 |
of poles: 6 |
| Housing Colour |
Black |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| Institute (CSA) |
CSA |
| Institute (UR) |
UR |
| Insulating material |
PA GF |
| Insulating material group |
I |
| interchangeability) |
DIN IEC 60512 part 7 section 5 / 05.94 |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
2.000 " |
| L1 in mm |
50.80mm |
| Layer structure of plug contact |
= 3 µm Ag |
| Material contact |
Copper |
| Material insulation body |
Polyamide (PA) |
| Material of contact surface |
Silver |
| Modular spacing connections |
10.16 |
| Modular spacing contacts |
10.16 |
| Net weight |
70.86g |
| Notes |
•Additional variants on request |
| Number of Poles |
6 |
| Number of Rows |
1 |
| Operating Temperature |
-50 - 130 |
| Operating temperature, max. |
130°C |
| Operating temperature, min. |
-50°C |
| Overvoltage category |
III |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.400 " |
| Pitch in mm (P) |
10.16mm |
| Plug gauge in accordance with EN |
5.3mm (B6) |
| Plugging cycles |
25 |
| Pollution degree |
2 |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 1000 V / 78 A / 0.2 - 16mm² |
| Product family |
OMNIMATE Power - series |
| Product image |
Dimensional drawing |
| Pull-out test |
Standard |
| Rated cross-section |
16mm² |
| Rated current (Use group B / CSA) |
57 A |
| Rated current (Use group C / CSA) |
57 A |
| Rated current (Use group C / UL 1059) 57 A |
Rated current (Use group D / UL 1059) 5 A |
| Rated current (Use group D / CSA) |
5 A |
| Rated current In |
72 |
| Rated impulse voltage for surge voltage 6 kV |
Rated impulse voltage for surge voltage 8 kV |
| Rated impulse voltage for surge voltage 8 kV |
Short-time withstand current resistance 3 x 1s with 800A |
| Rated Surge Voltage |
8 |
| Rated voltage |
1000 |
| Rated voltage (Use group B / CSA) |
600 V |
| Rated voltage (Use group B / UL 1059) 600 V |
Rated voltage (Use group C / UL 1059) 600 V |
| Rated voltage (Use group C / CSA) |
600 V |
| Rated voltage (Use group D / CSA) |
600 V |
| Rated voltage (Use group D / UL 1059) 600 V |
Rated current (Use group B / UL 1059) 57 A |
| Rated voltage for surge voltage class / |
1000 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Screwdriver blade |
1.0 x 5.5 |
| Screwdriver blade standard |
DIN 5264 |
| Solid, max. H05(07) V-U |
16mm² |
| Solid, min. H05(07) V-U |
0.2mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stranded, max. H07V-R |
16mm² |
| Stranded, min. H07V-R |
6mm² |
| Temperature range, installation, max. |
130°C |
| Temperature range, installation, min. |
-25°C |
| Test for damage to and accidental |
Standard |
| Test: Clampable cross section |
Standard |
| Test: Durability of markings |
Standard |
| Test: Misengagement (Non- |
Standard |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque, max. |
1.5 Nm |
| Tightening torque, min. |
1.2 Nm |
| Type |
PCB Connector |
| Type of connection |
Flexible PCB-connector |
| Type of electric connection |
Screw connection |
| UL 94 flammability rating |
V-0 |
| UL File Number Search |
UL Website |
| Version |
PCB plug-in connector, male plug, 10.16 mm, |
| Volume resistance |
4.50 mO |
| VPE height |
61.00mm |
| VPE length |
354.00mm |
| VPE width |
140.00mm |
| Wire connection method |
Clamping yoke connection |
| Wire cross-section, AWG, max. |
AWG 6 |
| Wire cross-section, AWG, min. |
AWG 24 |
| wire end ferrule |
Stripping length |
| With protective conductor |
false |
