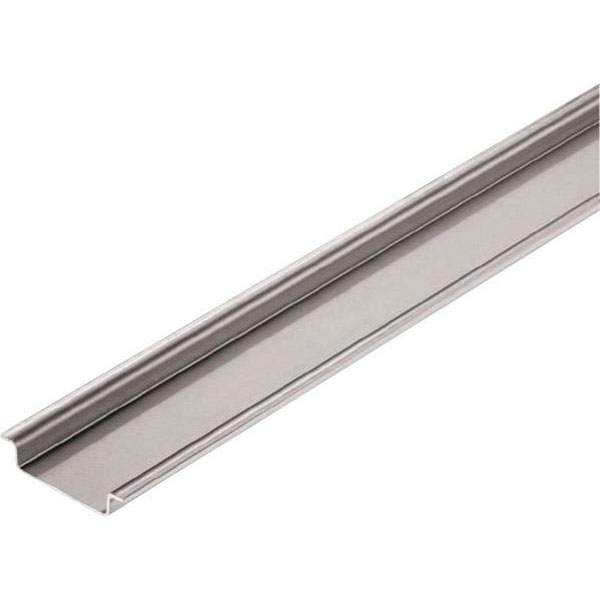

Weidmüller 1879090000 Rail Serial Terminal Accessory is a robust and reliable component designed for industrial applications, offering a length of 2 metres to provide ample flexibility in system configurations. This product, also recognised under the alternate description 393951 - Weidmüller 1879090000, is engineered for seamless integration into electrical panels and control systems, where it serves as an essential element for secure and efficient rail mounting of serial terminals. The accessory is particularly suited for use in automation systems, factory settings, and other environments where precise electrical connectivity and organisation are critical. Its construction ensures durability and consistent performance, meeting the rigorous demands of professional engineering environments.
| Type |
Blank |
| Length |
2000mm |
| Material |
Steel |
| Ambient temperature |
-5 °C…40°C |
| Basic material |
Steel |
| Content |
2m |
| Depth |
7.5mm |
| Depth (inches) |
0.2953 inch |
| Dimensions |
(L x W x H) 2000 x 35 x 7.5 mm |
| Drill hole distance centrically |
25 |
| Drill-hole diameter |
5.20mm |
| ECLASS 14.0 |
27-40-06-02 |
| ECLASS 15.0 |
27-40-06-02 |
| ETIM 10.0 |
EC001285 |
| ETIM 8.0 |
EC001285 |
| ETIM 9.0 |
EC001285 |
| GTIN (EAN) |
4032248473786 |
| GTIN (EAN) 4008190007584 |
when screwed in |
| GTIN (EAN) 4008190086459 |
14mm |
| GTIN (EAN) 4050118078701 |
mm, Depth: 9 mm, HB |
| Height |
7.5mm |
| Height (inches) |
1.378 inch |
| Installation advice |
Direct mounting |
| Length of the terminal rail |
min. |
| Material thickness |
1 |
| max. |
2000mm |
| Model |
DIN rail (top hat rail) 35/7.5mm |
| Net weight |
300.93g |
| nominal |
2000mm |
| Pre-punched mounting rail |
Yes |
| Product information |
Din rails with Sendzimier treatment have limited corrosion resistance on the outer and cut edges |
| Product Type |
Rail |
| Punch shape |
Long-slot |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Slit gap |
7.00mm |
| Slit length |
18.00mm |
| Slit width |
5.20mm |
| Slotted drill holes |
Yes |
| Solder eyelet hole diameter (D) |
5.2mm |
| Spacing of holes, centre-to-centre |
25mm |
| Standards |
DIN EN 60715 |
| Surface finish |
galvanic zinc plated and passivated |
| Surface protection |
Galvanic/electrolytic zinc plated |
| Thickness |
1.00mm |
| Version |
Terminal rail, Accessories, Steel, galvanic zinc |
| Weight |
305g |
| Width |
35mm |
| Width (inches) |
78.74 inch |
