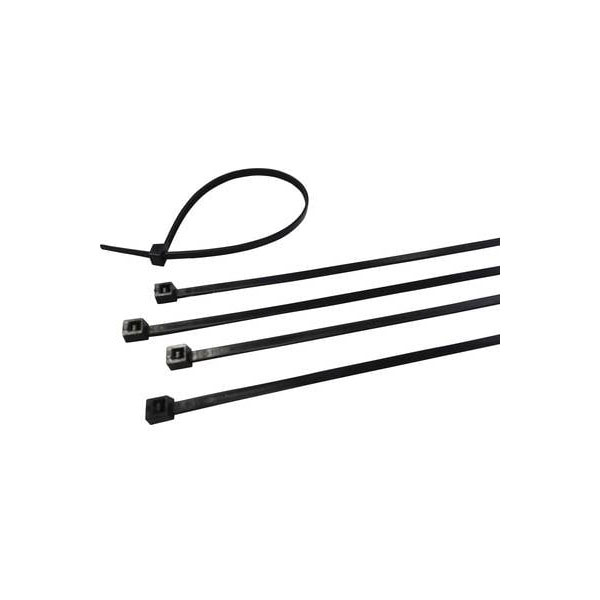

Weidmuller 1720660000 CB 200/3.6 Cable Tie Black 200mm x 3.6mm 100 pieces

Weidmüller's 1720660000 CB 200/3.6 cable tie measures 200 mm in length and 3.6 mm in width, and is available in black. This industrial item, typically used for cable bundling and management, comes in a packaging unit of 100 pieces. It is ideal for organising and securing cables in various settings.

Length	200mm
Width	3.6mm
Colour	Black
Material	PA66
Type	Cable Ties
Approvals	UR
Band width	3.5
Basic material	Polyamide 66
Bundle diameter	50 - 3
Bundle diameter, max.	50mm
Bundle diameter, min.	3mm
Cable diameter, max.	50mm
Certificate No. (UR)	E317499
Color	Black
Depth	1.2mm
Depth (inches)	0.0472 inch
Dimensions	(W x H) 3.6 mm x 200 mm
ECLASS 14.0	27-14-07-02
ECLASS 15.0	27-14-07-02
ETIM 10.0	EC000046
ETIM 8.0	EC000046
ETIM 9.0	EC000046
Flammability Rating	UL94 V-2
Fluorescent	false
For re-opening	No
Gearing	Inside
GTIN (EAN)	4008190362348
Halogen	No
Halogen free	true
Height	200mm
Height (inches)	7.874 inch
Inflammability class of insulation material according to UL94	V2
Length belt/tape/tie	200
Material quality	Polyamide (PA)
Max. bundle diameter	50mm
Max. sheet thickness	2.00mm
Max. temperature	+85°C
Min. temperature	-40°C
Minimum holding force	130N
Mounting temperature	10 - 60
Net weight	0.93g
Operating Temperature	-40 - 85
Operating Temperature Range	-40...85°C
Operating temperature range, max.	85°C
Operating temperature range, min.	-40°C
Package/Case	100
Product information	Number of bags in box (pieces): 75
Qty.	7500 items
REACH SVHC	No SVHC above 0.1 wt%
Releasable closure	false
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Surface protection	Plastic-coated
Tensile Strength	180 N
Tensile strength (Pound-force)	40 lbf
Text strip	None
Tie thickness	1.2
Transparent	false
Type of fastening	Other
UL 94 flammability rating	V-2
UL File Number Search	UL Website
UV-resistant	No
UV-stable according to ASTM D6779	false
Version	Cable ties, 3.5 x 200 mm, Polyamide 66, 180 N
Weight	0.95g
Width (inches)	0.1378 inch
