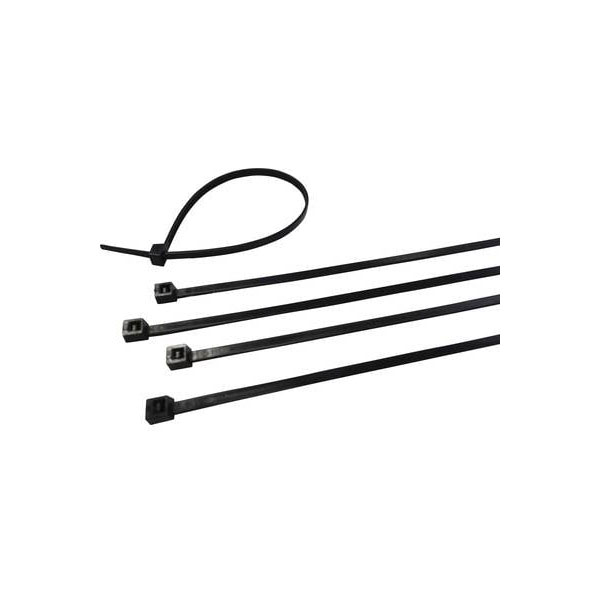

The Weidmüller 1697930000 CB 360/4.8 cable tie is a black, 360 mm long and 4.8 mm wide tie supplied in a pack of 100 pieces, ideal for cable bundling and management. Manufactured for industrial applications, it offers reliable and durable cable management solutions. Suitable for organising and securing cables, this product is essential in various industrial setups.
| Length |
360mm |
| Width |
4.8mm |
| Colour |
Black |
| Material |
PA66 |
| Type |
Cable Ties |
| Approvals |
UR |
| Band width |
4.5 |
| Basic material |
Polyamide 66 |
| Bundle diameter |
100 - 3.5 |
| Bundle diameter, max. |
100mm |
| Bundle diameter, min. |
3.5mm |
| Cable diameter, max. |
103mm |
| Certificate No. (UR) |
E317499 |
| Color |
Black |
| Depth |
1.8mm |
| Depth (inches) |
0.0709 inch |
| Dimensions |
(W x H) 4.8 mm x 360 mm |
| ECLASS 14.0 |
27-14-07-02 |
| ECLASS 15.0 |
27-14-07-02 |
| ETIM 10.0 |
EC000046 |
| ETIM 8.0 |
EC000046 |
| ETIM 9.0 |
EC000046 |
| Flammability Rating |
UL94 V-2 |
| Fluorescent |
false |
| For re-opening |
No |
| Gearing |
Inside |
| GTIN (EAN) |
4008190883003 |
| Halogen |
No |
| Halogen free |
true |
| Height |
360mm |
| Height (inches) |
14.1732 inch |
| Inflammability class of insulation material according to UL94 |
V2 |
| Length belt/tape/tie |
360 |
| Material quality |
Polyamide (PA) |
| Max. bundle diameter |
103mm |
| Max. sheet thickness |
1.80mm |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum holding force |
220N |
| Mount |
Free Hanging |
| Mounting temperature |
10 - 60 |
| Net weight |
2.36g |
| Operating Temperature |
-40 - 85 |
| Operating Temperature Range |
-40...85°C |
| Operating temperature range, max. |
85°C |
| Operating temperature range, min. |
-40°C |
| Package Quantity |
1 |
| Package/Case |
100 |
| Product information |
Number of bags in box (pieces): 40 |
| Qty. |
4000 items |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Releasable closure |
false |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Surface protection |
Plastic-coated |
| Tensile Strength |
220 N |
| Tensile strength (Pound-force) |
49 lbf |
| Text strip |
None |
| Tie thickness |
1.8 |
| Transparent |
false |
| Type of fastening |
Other |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| UV-resistant |
No |
| UV-stable according to ASTM D6779 |
false |
| Version |
Cable ties, 4.5 x 360 mm, Polyamide 66, 220 N |
| Weight |
2.37g |
| Width (inches) |
0.1772 inch |
