Weidmuller 1692261001-1 KLBUE Bus Bar Mount 10x3mm Plate Compatible

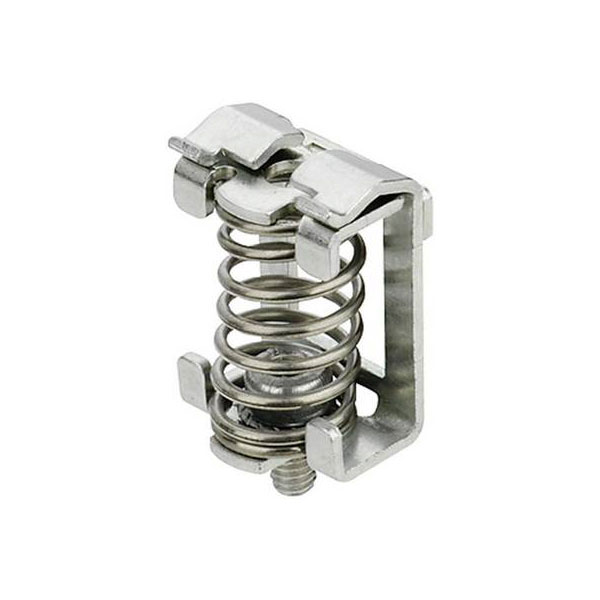

The Weidmüller KLBUE 3-8 SC is a serial terminal designed for use with a 10 x 3 mm bus bar. It ensures continuity and provides effective shielding in switchboard terminal applications. This shield connector is ideal for maintaining secure and efficient electrical connections in switchboards.

Colour	Other
Type	Shielding connector
Number of Ways	2
Clamping range diameter	3 - 8mm
Compatible with (details)	10 x 3 mm bus bar
Connection (type)	Spring-Loaded Connector
Connections	2
Content	2
Length (mm)	30mm
Material (details)	Steel-zinc coated
Misc Attribute	KLBUE 3-8 SC
Product Type	Terminal Block
Voltage Rating (V, V DC)	100 V
Weight (g, g/m)	11.024
Width (mm)	10
Wire Gauge	8mm²
