Weidmüller 1601750000 crimp contact 100pcs heavy-duty copper alloy

Weidmuller
Order Code:

08-2509

Brand: Weidmuller MPN: 1601750000 EAN-13: 4008190134280
Qty Unit Price (Ex VAT)
1+ £65.22
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

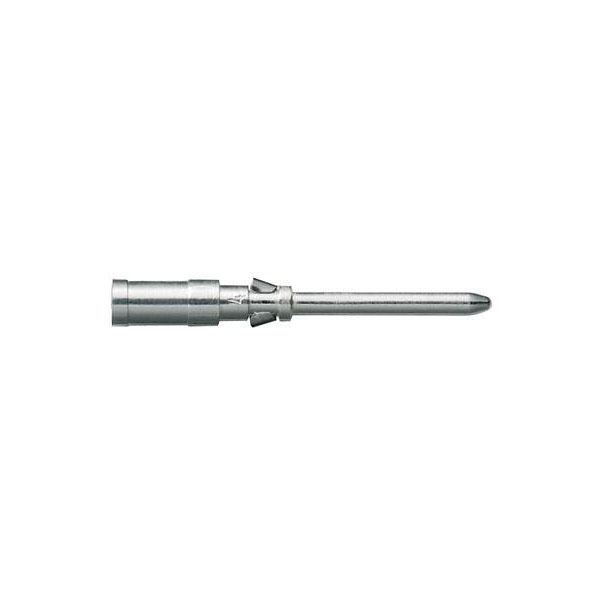

The Weidmüller Crimp Contact HDC-C-HD-SM0.75-1.00AG is designed for industrial applications requiring high voltage and heavy-duty connectors. It is a robust multicore connector suitable for demanding electrical engineering environments. The packaging contains 100 pieces, ideal for production settings.
Type Crimp contact
Ambient temperature 40 - 40
Approvals CSA, cURus
Basic material Copper alloy
Certificate No. (cURus) E92202
Conductor cross-section, max. 1mm²
Conductor cross-section, min. 0.75mm²
Connectable conductor cross section multi-wired 0.75 - 1
Connection Crimp
Contact diameter, male Ø 1.6mm
Contact Material Copper, Copper Alloy
Contact Plating Silver
Contact Type Pin
Contains Lead No
Cross-section for connected wire 0.75 - 1mm²
Diameter 3.5mm
Diameter plug-in contact 1.6
ECLASS 14.0 27-44-02-04
ECLASS 15.0 27-44-02-04
ETIM 10.0 EC000796
ETIM 8.0 EC000796
ETIM 9.0 EC000796
Gender Male
GTIN (EAN) 4008190134280
GTIN (EAN) 4032248698158 connection, Installation size: HQ
GTIN (EAN) 4032248698165 connection, Installation size: HQ
GTIN (EAN) 4032248733446 crimp
Height 75mm
Length 5mm
Material Copper alloy
Material contact Other copper alloys
Material of contact Copper alloy
Material of contact surface Silver
Max. rated current of one contact 10
Mount Cable
Net weight 0.55g
Orientation Straight
Package Quantity 1
Package/Case 100
Packaging Bulk
Plugging cycles = 500
Production methods turned
REACH SVHC Lead 7439-92-1
ROHS Conform
RoHS Compliance Status Compliant with exemption
RoHS Compliant Yes
SCIP 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40
Series Rockstar® ConCept
Strip Length 8
Stripping length, rated connection 8mm
Suitable For HD
Surface finish silver
Termination Crimp
Type of connection Crimp connection
Type of contact Turned (lathe)
Type of electric connection Crimp connection
UL File Number Search UL Website
Version Heavy-duty connectors, Crimp contact, HD, HDD,
Version insert HD, HDD, HQ, MixMate
Volume resistance =4 mO
Width 45mm
Wire/Cable Gauge 18AWG
