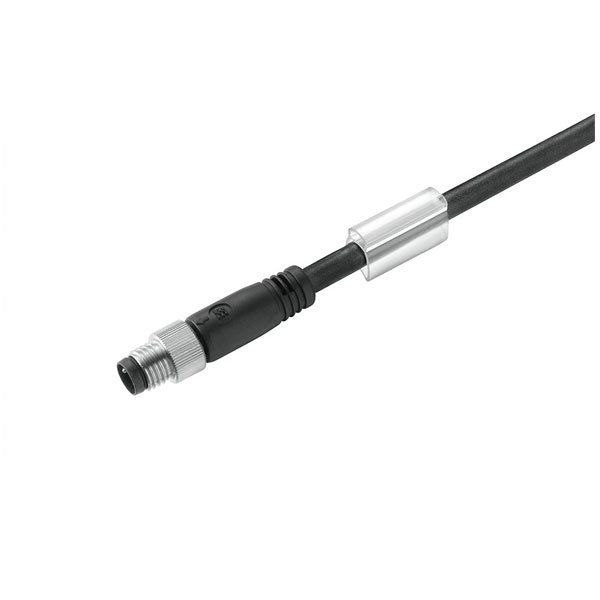

Weidmüller manufactures the 1555331000 cable characterised by its single-ended design with no connector and an M8 thread. Its robust and versatile features make it suitable for industrial automation and sensor applications. This cable is often utilised in harsh environments where secure and reliable connectivity is essential.
| Type |
Sensor/Actuator Cable |
| Acceleration |
5 m/s² |
| Bending cycles |
1 mill. |
| Bending radius, min., moving |
10 x cable diameter |
| Bending radius, min., stationary |
5 x cable diameter |
| Cable Length |
10 |
| Cable Type |
Multi-core |
| Coding |
A-coded |
| Colour cable sheath |
Black |
| Colour coding |
blue, red, white, brown, |
| Configurable cable length |
No |
| Connection thread |
M8 |
| Connector standard |
IEC 61076-2-104 |
| Contact surface |
Gold-plated |
| Continuity resistance |
0 |
| Core cross-section |
0.25mm² |
| Degree of protection (IP) |
IP67 |
| Dimensioned drawing |
Pole scheme |
| ECLASS 14 |
27-06-03-11 |
| ECLASS 15.0 |
27-06-03-11 |
| ETIM 10 |
EC001855 |
| ETIM 8.0 |
EC001855 |
| ETIM 9.0 |
EC001855 |
| GTIN (EAN) |
4050118368901 |
| Halogen |
No |
| Halogen free |
true |
| Housing main material |
PUR |
| Insulation |
PP |
| Insulation Resistance |
108 O |
| Irradiation crosslinked |
No |
| jumpered |
No |
| LED |
No |
| Male, straight |
Male |
| Material of cable sheath |
Polyurethane (PUR) |
| Material of contact surface |
Gold |
| Net weight |
467g |
| Nominal Current |
2 A |
| Nominal Voltage |
30 V |
| Number of Poles |
8 |
| Outer cladding in accordance with UL |
20549 (80 °C / 300 V) |
| Outside Diameter |
5.9 mm ± 0.2mm |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80 |
| Permitted cable outer temperature during assembling/handling |
-25 - 80 |
| Plug left |
M8, IP67, male contact, |
| Plug right |
free conductor end |
| Plugging cycles |
= 100 |
| Pollution severity |
3 |
| Positioning cable feed, box-sided |
Straight |
| Protection degree |
IP67, when screwed in, |
| Rated current |
2 A (8-pole) / 1.5 A (12- |
| Rated current In |
2 |
| Rated voltage |
30 |
| REACH SVHC |
Lead 7439-92-1 |
| Resistant to welding beads |
No |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Screened |
false |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Shielded |
No |
| Speed |
5 m/s |
| Suitable for cable carriers |
Yes |
| Temperature range of housing |
-40 … +85 ° C |
| Temperature range, moving |
-25...80°C |
| Temperature range, stationary |
-40...80°C |
| Threaded ring material |
Brass, nickel-plated |
| Tightening torque |
M12: 0.8 - 1.2 Nm |
| Torsion resistance |
180 °/m |
| Type of electrical connection, box-sided |
M8 |
| Type of plug-in contact, box-sided |
Male (plug) |
| Vulcanized |
false |
| Welding spark resistance |
No |
| Wiring diagram |
The ideal tool: Screwty ® with torque function |
| With LED indication |
false |
