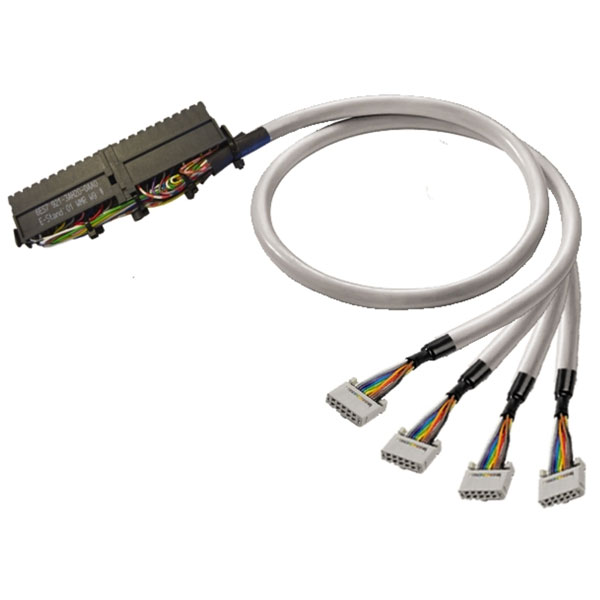

Weidmüller produces the 1512640050 cable designed for transmitting digital signals with durability and reliability. The product ensures high-quality signal integrity suitable for industrial automation applications. It is typically used in environments where robust and dependable connections are required, such as manufacturing facilities.
| Colour |
Grey |
| Length |
5 |
| Type |
Cable |
| Basic material |
PVC |
| Cable |
Cable LiYY |
| Cable Length |
5 m |
| Capacity wire / wires |
300 pF/m |
| Connector PLC side |
SIEMENS S7300 |
| ECLASS 14 |
27-24-22-20 |
| ECLASS 15.0 |
27-24-22-20 |
| ETIM 10 |
EC000237 |
| ETIM 8.0 |
EC000237 |
| ETIM 9.0 |
EC000237 |
| Function |
PLC - other devices |
| GTIN (EAN) |
4099986589933 |
| High voltage test |
1 KV/1s |
| Interface connector |
4xHE10 10P |
| Net weight |
862g |
| Number of Poles |
10 |
| Number of poles, min. |
10-pole |
| Operating Temperature |
-10...50°C |
| Outer Diameter |
5.4 ± 1mm |
| Permissible current strength per path, |
1 A |
| Qty. |
1 items |
| Rated voltage |
= 60 V DC = 25 V AC |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance |
= 150 mO/m |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
4bbf2c0d-0764-4fc8-bb24-9351c28c190d |
| Storage temperature |
-10...60°C |
| Suitable For |
Digital signals |
| Suitable for analogue signals |
false |
| Suitable for digital signals |
true |
| Suitable for input board PLC |
false |
| Suitable for output card PLC |
false |
| Total current, max. |
3 A |
| Type of electrical connection, box-sided |
Connection plug board |
| Type of electrical connection, field-sided |
Cable end sleeve |
| Version |
Pre-assembled cable, PAC, Cable LiYY, 5.4 ± 1mm |
| Wire cross-section |
0.14mm² |
